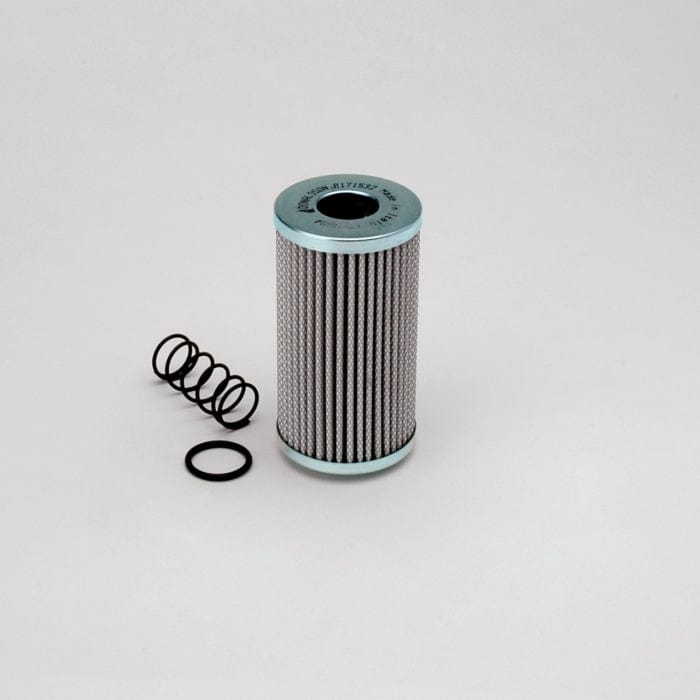

Hydraulic Filter, Cartridge - Donaldson P171532

Hydraulic Filter, Cartridge - Donaldson P171532

£16.44
£16.44
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P171532

Hydraulic Filter, Cartridge
View full details

Specifications

Attributes

  • Outer Diameter: 70 mm (2.76 inch)
  • Inner Diameter: 29 mm (1.14 inch)
  • Length: 128 mm (5.04 inch)
  • Efficiency Beta 1000: 23 micron
  • Bypass Valve: Yes
  • Bypass Valve Setting LR: 1.5 bar (22 psi)
  • Collapse Burst: 10 bar (145 psi)
  • Style: Cartridge
  • Series: FIK
  • Media Type: Synthetic

Packaged Dimensions

  • Packaged Length: 0.079 m (3.15 inch)
  • Packaged Width: 0.079 m (3.15 inch)
  • Packaged Height: 0.148 m (5.91 inch)
  • Packaged Weight: 0.331 kg (0.73 lb)
  • Packaged Volume: 0.001 m3 (0.03 ft3)

Other Information

  • Country of Origin: Italy
  • NMFC Code: 069100-09
  • HTS Code: 8421298090
  • UPC Code: 742330021941

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
BENATI 1813112
DANI-TECH P1715ABSP
F.B.O. CR10003
FIAT 9819175
LHA TIE16BTA252
LHA TIE1625A2
LOESING 140095
LUGLI CARRELLI ELEVATORI R2754382
MODINA RE25FV1
MP FILTRI MF1002A25HB
MP FILTRI MF1002A25HBP01
OMT CR100B
OMT CR100H
SOFRANCE NR20C025
VAN HOOL 109132353
VAN HOOL 10913235
VMC HF171532
