• Donaldson Hydraulic Filter, Cartridge - Donaldson P171531
1 1

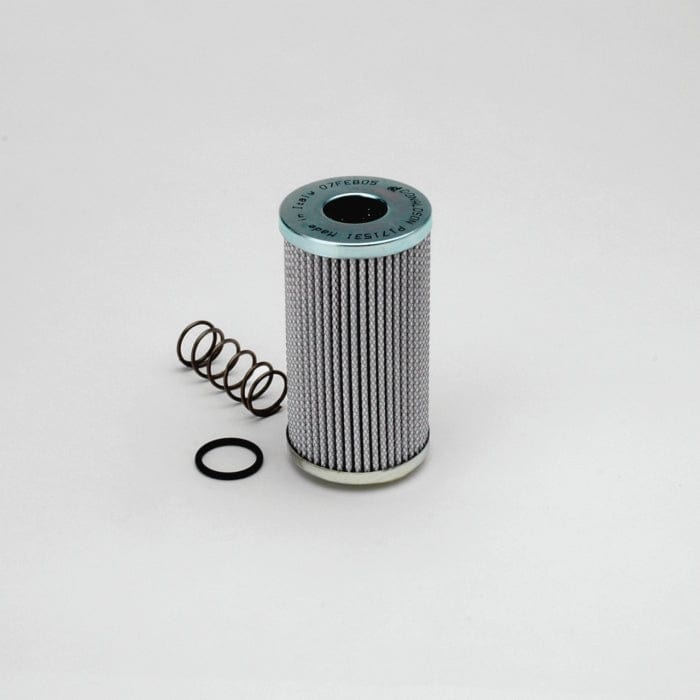

Hydraulic Filter, Cartridge - Donaldson P171531

Hydraulic Filter, Cartridge - Donaldson P171531

£14.51
£14.51
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P171531

Hydraulic Filter, Cartridge
View full details

Specifications

Attributes

  • Outer Diameter: 70 mm (2.76 inch)
  • Inner Diameter: 29 mm (1.14 inch)
  • Length: 130 mm (5.12 inch)
  • Efficiency Beta 1000: 11 micron
  • Bypass Valve: Yes
  • Bypass Valve Setting LR: 1.5 bar (22 psi)
  • Collapse Burst: 10 bar (145 psi)
  • Style: Cartridge
  • Series: FIK
  • Media Type: Synthetic

Packaged Dimensions

  • Packaged Length: 0.083 m (3.30 inch)
  • Packaged Width: 0.078 m (3.10 inch)
  • Packaged Height: 0.150 m (6.00 inch)
  • Packaged Weight: 0.170 kg (0.38 lb)
  • Packaged Volume: 0.001 m3 (0.04 ft3)

Other Information

  • Country of Origin: Italy
  • NMFC Code: 069100-09
  • HTS Code: 8421298090
  • UPC Code: 742330021927

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
BOSCH-REXROTH R928027893
DIECI BHC3011
DMIC DME2C
DMIC DRE3C
DMIC DTE3C
F.B.O. CR10002
IKRON HHC03590
IKRON HHC04100
IMPERIAL CV102848
ISEKI C036601
LENZ LIT100010SYN
LHA TIE16BTA102
LHA TIE1610A2
LHA TIE161012
LOESING 140066
MODINA RE25FD1
MP FILTRI MF1002A10HB
MP FILTRI MF1002A10HBP01
NACCO MATERIALS S01165510003
NACCO MATERIALS P171531
OMT CR100A
OMT CR112F10R
OMT CR100G
SAUER SUNDSTRAND 1512013
SOFRANCE NR20C010
VAN HOOL 109132323
VMC HF171531
WIRTGEN 144839
