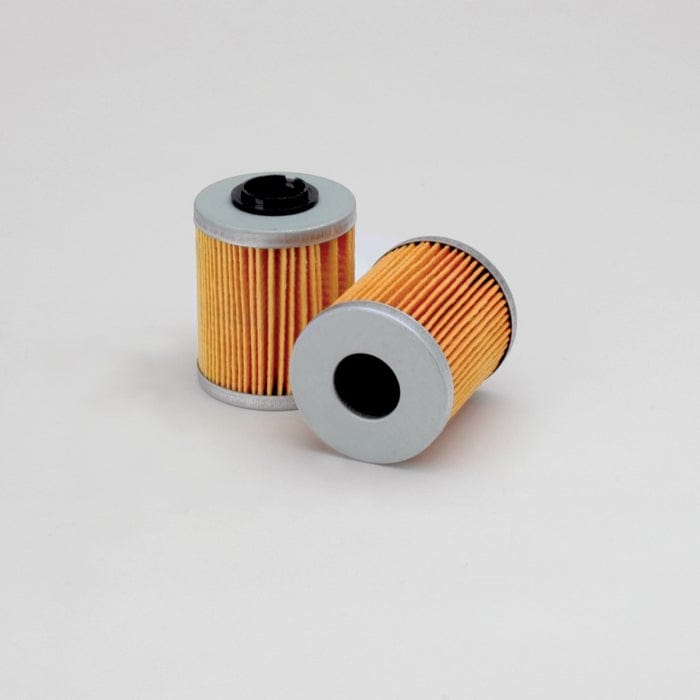

Hydraulic Filter, Cartridge - Donaldson P171528

Hydraulic Filter, Cartridge - Donaldson P171528

£9.69
£9.69
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P171528

Hydraulic Filter, Cartridge
View full details

Specifications

Attributes

  • Outer Diameter: 70 mm (2.76 inch)
  • Inner Diameter: 29 mm (1.14 inch)
  • Length: 82 mm (3.23 inch)
  • Efficiency Beta 2: 27 micron
  • Bypass Valve: Yes
  • Bypass Valve Setting LR: 1.5 bar (22 psi)
  • Collapse Burst: 10 bar (145 psi)
  • Style: Cartridge
  • Series: FIK
  • Media Type: Cellulose
  • Primary Application: F.B.O. CR60

Packaged Dimensions

  • Packaged Length: 0.079 m (3.15 inch)
  • Packaged Width: 0.079 m (3.15 inch)
  • Packaged Height: 0.108 m (4.33 inch)
  • Packaged Weight: 0.226 kg (0.50 lb)
  • Packaged Volume: 0.001 m3 (0.02 ft3)

Other Information

  • Country of Origin: Italy
  • NMFC Code: 069100-06
  • HTS Code: 8421298090
  • UPC Code: 742330083727

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
DIAMOND CR6030
DMIC DRE2B
DMIC DTE2B
F.B.O. CR603
FISPA LI3421
FODEN Y05773903
IKRON HHC03561
IKRON HHC04076
LHA TIE16P251
LHA TIE16251
LHA TIE12P251
LOESING 140059
MODINA RE15CV1
MOFFET 260401
MP FILTRI MF1001P25NB
MP FILTRI F6P20A
MP FILTRI MF1001P25NBP01
OMT CR111C25R
SAUER SUNDSTRAND SQC00045
SAUER SUNDSTRAND 1511012
SAUER SUNDSTRAND 607286
VAPORMATIC 11966

Equipment Compatibility

Equipment Year Equipment Type Equipment Options Engine Engine Option
AEBI TP27 - TRACTOR TP SERIES KUBOTA D1402-B -
AEBI TP47 - TRACTOR TP SERIES KUBOTA V1902B -
AEBI TP47S - TRACTOR TP SERIES KUBOTA V2203B -
AEBI TP57 - TRACTOR TP SERIES MERCEDES-BENZ OM 616 -
AEBI TP67 - TRACTOR TP SERIES MERCEDES-BENZ OM 601 -
AEBI TP67 - TRACTOR TP SERIES MERCEDES-BENZ OM 616 -
AEBI TP97 - TRACTOR TP SERIES MERCEDES-BENZ OM 602 -
