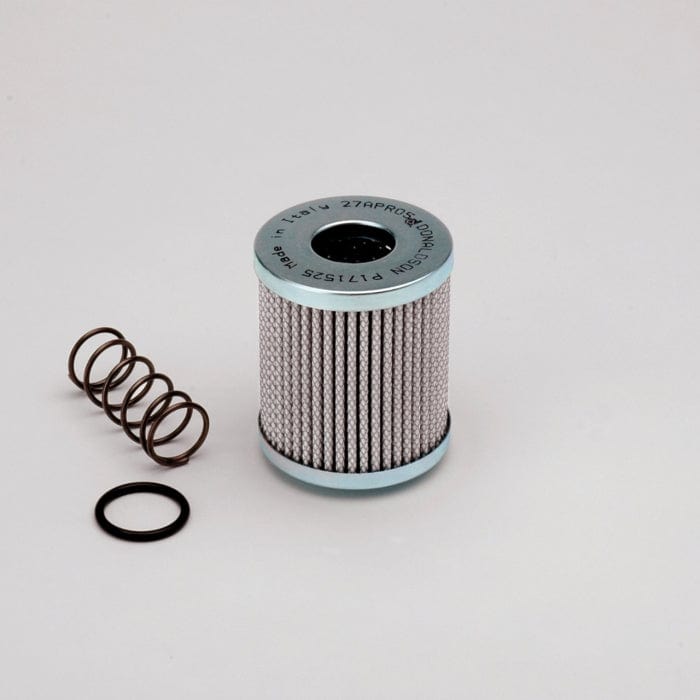

Hydraulic Filter, Cartridge - Donaldson P171525

Attributes

• Outer Diameter: 70 mm (2.76 inch)
• Inner Diameter: 29 mm (1.14 inch)
• Length: 82 mm (3.23 inch)
• Efficiency Beta 1000: 11 micron
• Bypass Valve: Yes
• Bypass Valve Setting LR: 1.5 bar (22 psi)
• Collapse Burst: 10 bar (145 psi)
• Style: Cartridge
• Series: FIK
• Media Type: Synthetic

Packaged Dimensions

• Packaged Length: 0.090 m (3.60 inch)
• Packaged Width: 0.070 m (2.80 inch)
• Packaged Height: 0.103 m (4.10 inch)
• Packaged Weight: 0.127 kg (0.28 lb)
• Packaged Volume: 0.001 m3 (0.02 ft3)

Other Information

• Country of Origin: Italy
• NMFC Code: 069100-09
• HTS Code: 8421298090
• UPC Code: 742330021880
