• Donaldson Hydraulic Filter, Cartridge - Donaldson P171503
1 1

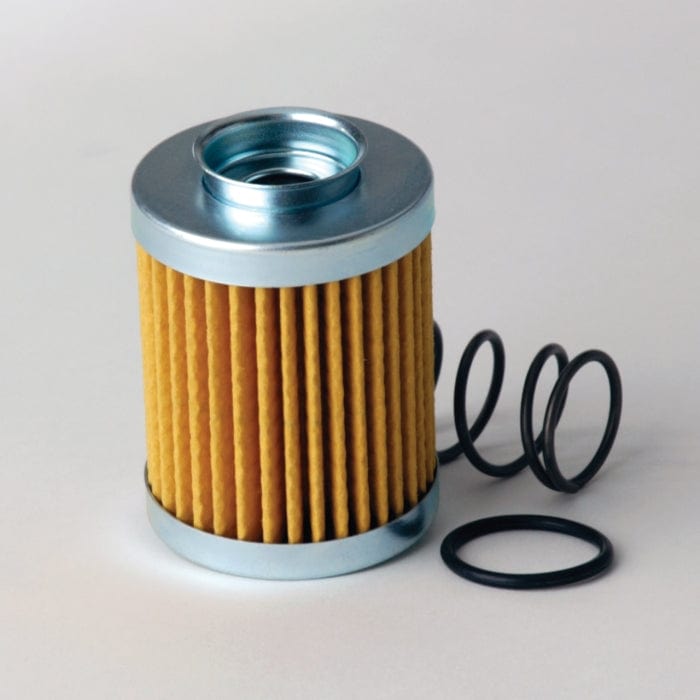

Hydraulic Filter, Cartridge - Donaldson P171503

Hydraulic Filter, Cartridge - Donaldson P171503

£8.40
£8.40
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P171503

Hydraulic Filter, Cartridge
View full details

Specifications

Attributes

  • Outer Diameter: 52 mm (2.05 inch)
  • Inner Diameter: 25.5 mm (1.00 inch)
  • Length: 67 mm (2.64 inch)
  • Efficiency Beta 2: 7 micron
  • Efficiency Beta 1000: 23 micron
  • Bypass Valve: Yes
  • Bypass Valve Setting LR: 1.5 bar (22 psi)
  • Collapse Burst: 10 bar (145 psi)
  • Style: Cartridge
  • Series: FIK
  • Media Type: Cellulose
  • Primary Application: F.B.O. CR30

Packaged Dimensions

  • Packaged Length: 0.059 m (2.36 inch)
  • Packaged Width: 0.059 m (2.36 inch)
  • Packaged Height: 0.108 m (4.33 inch)
  • Packaged Weight: 0.128 kg (0.28 lb)
  • Packaged Volume: 0.000 m3 (0.01 ft3)

Other Information

  • Country of Origin: Italy
  • NMFC Code: 069100-10
  • HTS Code: 8421298090
  • UPC Code: 742330083697

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
AVN HYDRAULICS 133700
DMIC D10030AN
DMIC DRE1A
DMIC DTE1A
F.B.O. CR301
HIAB 431877
IKRON HEK0210060ASSP010VMB17B
LHA TIE0810
LOESING 140028
MODINA RE8CD1
MP FILTRI MF0301P10HBP01
MP FILTRI F3P10A
MP FILTRI F3M10A
MP FILTRI MF0301P10NBP01
MP FILTRI MF0301P10NB
MP FILTRI MF0301P10HB
SAUER SUNDSTRAND 607870
SAUER SUNDSTRAND 1511005
SNORKEL 11488101
