• Donaldson Hydraulic Filter, Cartridge - Donaldson P171454
1 1

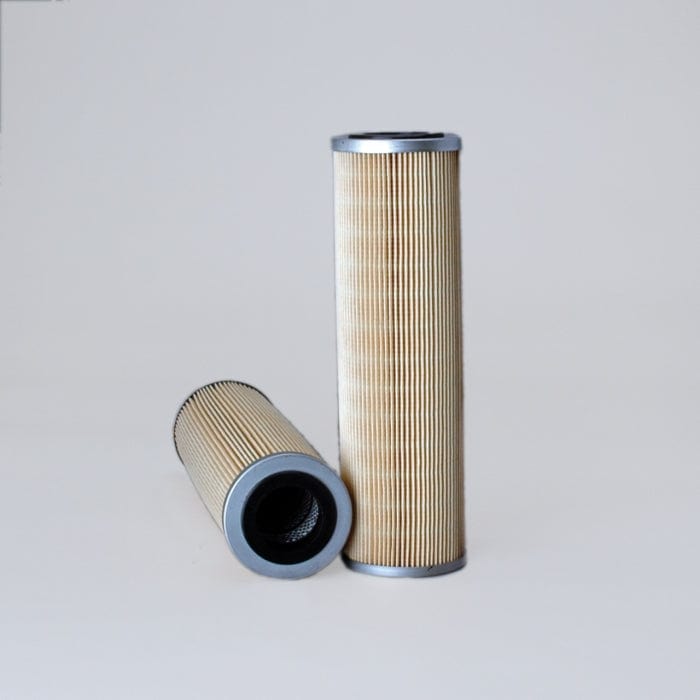

Hydraulic Filter, Cartridge - Donaldson P171454

Hydraulic Filter, Cartridge - Donaldson P171454

£58.16
£58.16
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P171454

Hydraulic Filter, Cartridge
Outer Diameter 4.39 inch (111.51 mm)
Inner Diameter 2.21 inch (56.26 mm)
Length 14.74 inch (374.39 mm)
Efficiency Beta 2 9 micron
Efficiency Beta 1000 26 micron
Collapse Burst 100 psi (6.9 bar)
Style Cartridge
Media Type Cellulose
View full details

Specifications

Attributes

  • Outer Diameter: 111.51 mm (4.39 inch)
  • Inner Diameter: 56.26 mm (2.21 inch)
  • Length: 374.39 mm (14.74 inch)
  • Efficiency Beta 2: 9 micron
  • Efficiency Beta 1000: 26 micron
  • Collapse Burst: 6.9 bar (100 psi)
  • Style: Cartridge
  • Media Type: Cellulose

Packaged Dimensions

  • Packaged Length: 0.123 m (4.90 inch)
  • Packaged Width: 0.123 m (4.90 inch)
  • Packaged Height: 0.420 m (16.80 inch)
  • Packaged Weight: 0.863 kg (1.90 lb)
  • Packaged Volume: 0.007 m3 (0.23 ft3)

Other Information

  • Country of Origin: Mexico
  • NMFC Code: 069100-05
  • HTS Code: 8421298090
  • UPC Code: 742330021835

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
P & H 45Z459
