• Donaldson Hydraulic Filter, Cartridge - Donaldson P171315
1 1

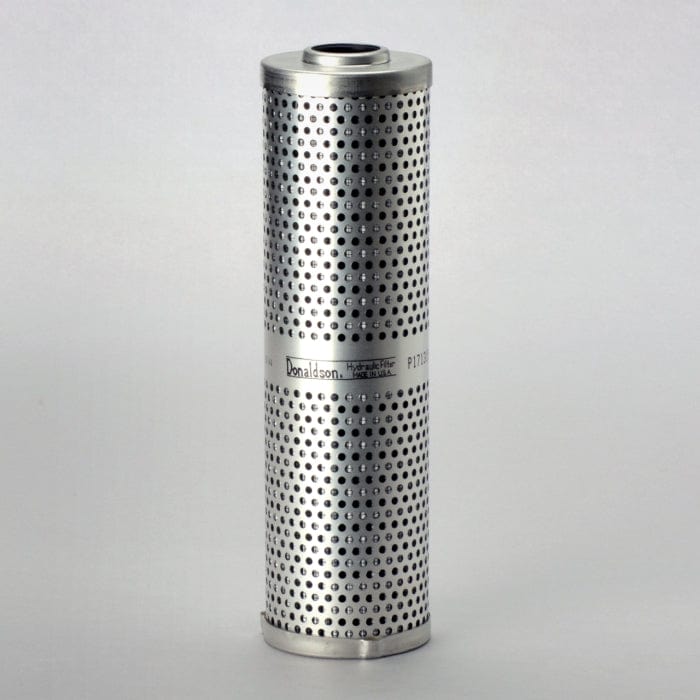

Hydraulic Filter, Cartridge - Donaldson P171315

Hydraulic Filter, Cartridge - Donaldson P171315

£28.57
£28.57
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P171315

Hydraulic Filter, Cartridge
Outer Diameter 2.69 inch (68.4 mm)
Inner Diameter 1.08 inch (27.43 mm)
Length 9.31 inch (236.5 mm)
Efficiency Beta 1000 7 micron
Collapse Burst 149 psi (10.3 bar)
Style Cartridge
Media Type Synthetic
View full details

Specifications

Attributes

  • Outer Diameter: 68.4 mm (2.69 inch)
  • Inner Diameter: 27.43 mm (1.08 inch)
  • Length: 236.5 mm (9.31 inch)
  • Efficiency Beta 1000: 7 micron
  • Collapse Burst: 10.3 bar (149 psi)
  • Style: Cartridge
  • Media Type: Synthetic

Packaged Dimensions

  • Packaged Length: 0.088 m (3.50 inch)
  • Packaged Width: 0.090 m (3.60 inch)
  • Packaged Height: 0.255 m (10.20 inch)
  • Packaged Weight: 0.449 kg (0.99 lb)
  • Packaged Volume: 0.002 m3 (0.07 ft3)

Other Information

  • Country of Origin: United States
  • NMFC Code: 133320
  • HTS Code: 8421298090
  • UPC Code: 742330021422

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
CATERPILLAR 3I1988
INTRUPA IF6020
LOESING 140126
MP FILTRI MP8105
NORMAN ULTRAPOROUS SCU1065
VMC HF171315
