• Donaldson Hydraulic Filter, Cartridge - Donaldson P171311
1 1

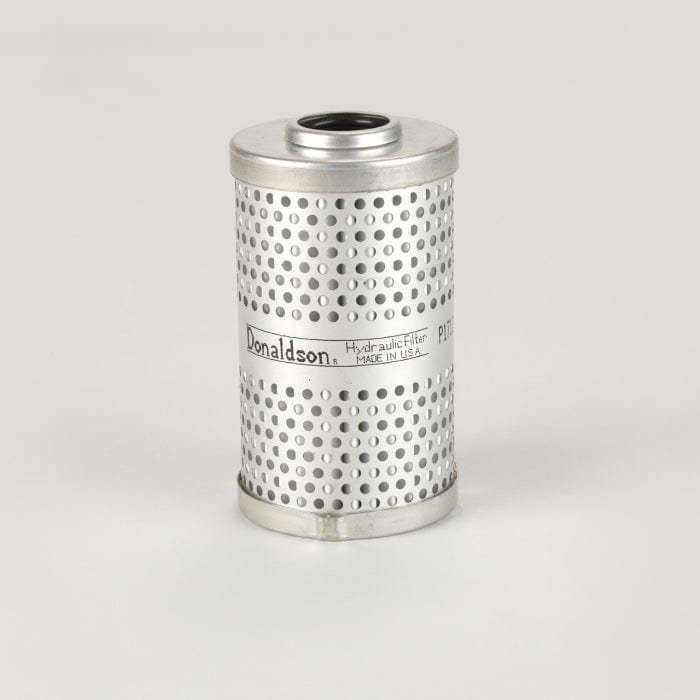

Hydraulic Filter, Cartridge - Donaldson P171311

Hydraulic Filter, Cartridge - Donaldson P171311

£27.04
£27.04
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P171311

Hydraulic Filter, Cartridge
Seal Material Nitrile
Outer Diameter 2.69 inch (68.4 mm)
Inner Diameter 1.08 inch (27.43 mm)
Length 4.56 inch (115.8 mm)
Efficiency Beta 1000 7 micron
Collapse Burst 149 psi (10.3 bar)
Style Cartridge
Media Type Synthetic
View full details

Specifications

Attributes

  • Seal Material: Nitrile
  • Outer Diameter: 68.4 mm (2.69 inch)
  • Inner Diameter: 27.43 mm (1.08 inch)
  • Length: 115.8 mm (4.56 inch)
  • Efficiency Beta 1000: 7 micron
  • Collapse Burst: 10.3 bar (149 psi)
  • Style: Cartridge
  • Media Type: Synthetic

Packaged Dimensions

  • Packaged Length: 0.30 FT
  • Packaged Width: 0.30 FT
  • Packaged Height: 0.51 FT
  • Packaged Weight: 0.263 kg (0.58 lb)
  • Packaged Volume: 0.001 m3 (0.05 ft3)

Other Information

  • Country of Origin: United States
  • NMFC Code: 069100-05
  • HTS Code: 8421298090
  • UPC Code: 742330021385

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
BEHRINGER BEC512A
MP FILTRI MP8102
VMC HF171311
