• Donaldson Hydraulic Filter, Cartridge - Donaldson P171279
1 1

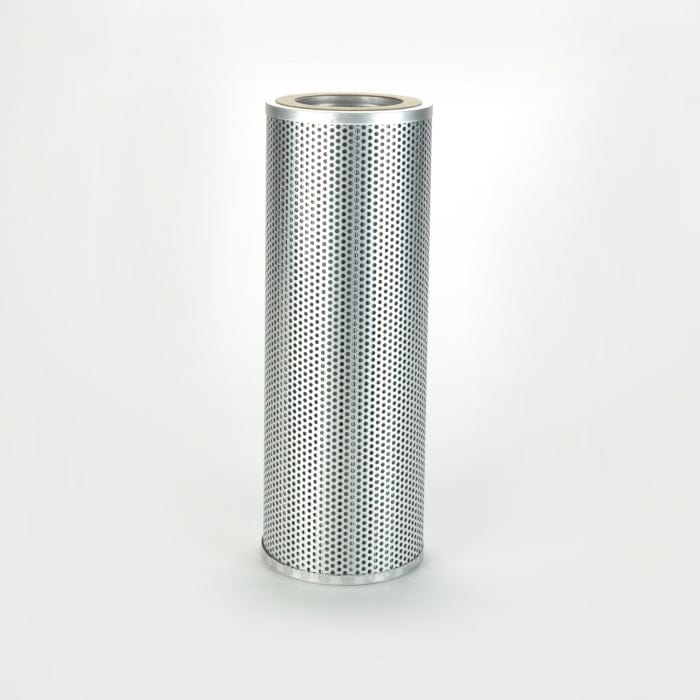

Hydraulic Filter, Cartridge - Donaldson P171279

Hydraulic Filter, Cartridge - Donaldson P171279

£188.63
£188.63
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P171279

Hydraulic Filter, Cartridge
Outer Diameter 7.44 inch (189 mm)
Inner Diameter 4.84 inch (123 mm)
Length 22.00 inch (558.8 mm)
Efficiency Beta 1000 50 micron
Collapse Burst 49 psi (3.4 bar)
Style Cartridge
Media Type Synthetic
View full details

Specifications

Attributes

  • Outer Diameter: 189 mm (7.44 inch)
  • Inner Diameter: 123 mm (4.84 inch)
  • Length: 558.8 mm (22.00 inch)
  • Efficiency Beta 1000: 50 micron
  • Collapse Burst: 3.4 bar (49 psi)
  • Style: Cartridge
  • Media Type: Synthetic

Packaged Dimensions

  • Packaged Length: 0.198 m (7.90 inch)
  • Packaged Width: 0.193 m (7.70 inch)
  • Packaged Height: 0.565 m (22.60 inch)
  • Packaged Weight: 4.787 kg (10.55 lb)
  • Packaged Volume: 0.022 m3 (0.80 ft3)

Other Information

  • Country of Origin: United States
  • NMFC Code: 069100-05
  • HTS Code: 8421298090
  • UPC Code: 742330021347

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
AMERICAN PARTS 92547
ATLAS COPCO 5535570100
BIG A 92547
CATERPILLAR 3I0470
CATERPILLAR 3I0459
CHARDONNET 7216047900
CLARK 1584819
CLARK,J.L. 1584819
EIMCO 335701
EIMCO 69027474
GROVE 9437100880
GROVE 9437100179
HAVAM HD8740
INGERSOLL RAND 35247881
INGERSOLL RAND 35323005
INGERSOLL RAND 35222981
KRALINATOR L421
LOESING 21086
LOESING 021086
TAMROCK 69027474
VMC HF171279
WAGNER 355701
WAGNER 353383
WAGNER MINING EQUIPMENT 355701
WALGAHN-MOTORENTECHN 00810890
WALGAHN-MOTORENTECHN 810890
