• Donaldson Hydraulic Filter, Cartridge - Donaldson P171244
1 1

Hydraulic Filter, Cartridge - Donaldson P171244

Hydraulic Filter, Cartridge - Donaldson P171244

£102.13
£102.13
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

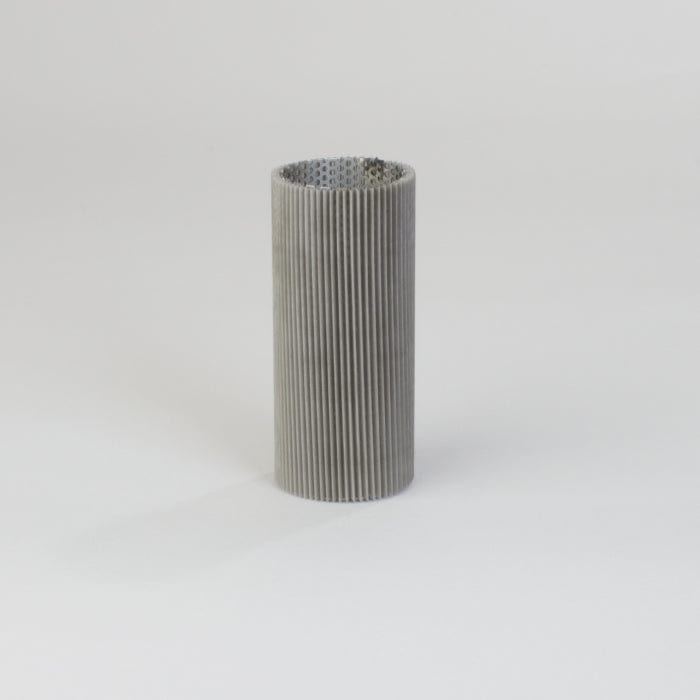

Donaldson P171244

Hydraulic Filter, Cartridge
Outer Diameter 2.83 inch (72 mm)
Inner Diameter 2.44 inch (62 mm)
Length 6.50 inch (165 mm)
Efficiency Beta 2 150 micron
Collapse Burst 75 psi (5.2 bar)
Style Cartridge
Media Type Wire Mesh
View full details

Specifications

Attributes

  • Mesh Rating: 150 micron
  • Outer Diameter: 72 mm (2.83 inch)
  • Inner Diameter: 62 mm (2.44 inch)
  • Length: 165 mm (6.50 inch)
  • Efficiency Beta 2: 150 micron
  • Collapse Burst: 5.2 bar (75 psi)
  • Style: Cartridge
  • Media Type: Wire Mesh

Packaged Dimensions

  • Packaged Length: 0.093 m (3.70 inch)
  • Packaged Width: 0.090 m (3.60 inch)
  • Packaged Height: 0.255 m (10.20 inch)
  • Packaged Weight: 0.252 kg (0.56 lb)
  • Packaged Volume: 0.002 m3 (0.08 ft3)

Other Information

  • Country of Origin: Canada
  • NMFC Code: 133320
  • HTS Code: 8421298090
  • UPC Code: 742330021255

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
VMC HF171244
