• Donaldson Hydraulic Filter, Cartridge - Donaldson P171243
1 1

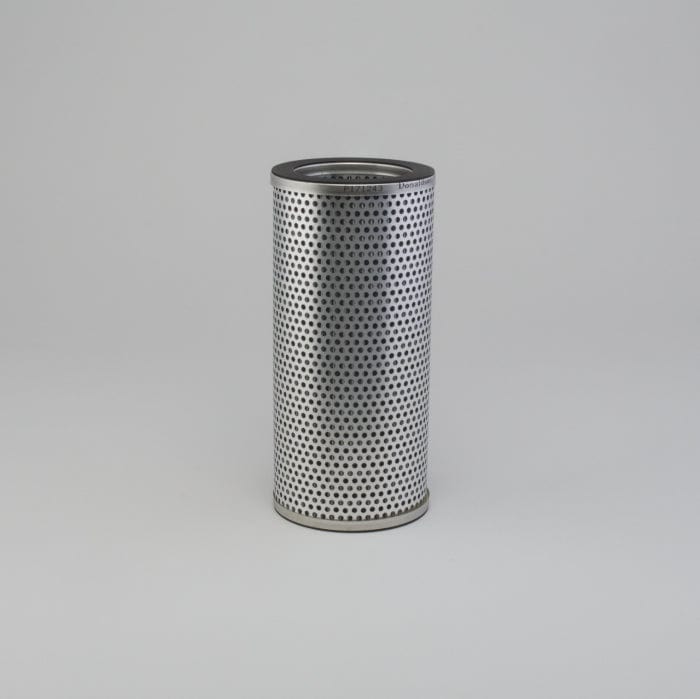

Hydraulic Filter, Cartridge - Donaldson P171243

Hydraulic Filter, Cartridge - Donaldson P171243

£171.15
£171.15
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P171243

Hydraulic Filter, Cartridge
Outer Diameter 5.62 inch (142.75 mm)
Inner Diameter 4.03 inch (102.36 mm)
Length 12.00 inch (304.8 mm)
Efficiency Beta 2 150 micron
Collapse Burst 75 psi (5.2 bar)
Style Cartridge
Media Type Wire Mesh
View full details

Specifications

Attributes

  • Mesh Rating: 150 micron
  • Outer Diameter: 142.75 mm (5.62 inch)
  • Inner Diameter: 102.36 mm (4.03 inch)
  • Length: 304.8 mm (12.00 inch)
  • Efficiency Beta 2: 150 micron
  • Collapse Burst: 5.2 bar (75 psi)
  • Style: Cartridge
  • Media Type: Wire Mesh

Packaged Dimensions

  • Packaged Length: 0.158 m (6.30 inch)
  • Packaged Width: 0.155 m (6.20 inch)
  • Packaged Height: 0.323 m (12.90 inch)
  • Packaged Weight: 1.496 kg (3.30 lb)
  • Packaged Volume: 0.008 m3 (0.29 ft3)

Other Information

  • Country of Origin: United States
  • NMFC Code: 133320
  • HTS Code: 8421298090
  • UPC Code: 742330021248
