• Donaldson Hydraulic Filter, Cartridge - Donaldson P170061
1 1

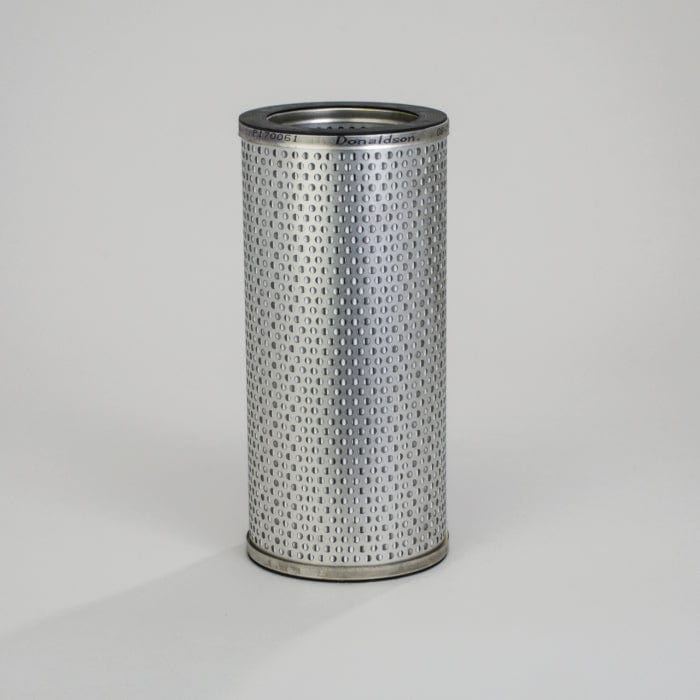

Hydraulic Filter, Cartridge - Donaldson P170061

Hydraulic Filter, Cartridge - Donaldson P170061

£117.15
£117.15
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P170061

Hydraulic Filter, Cartridge
View full details

Specifications

Attributes

  • Outer Diameter: 142.9 mm (5.63 inch)
  • Inner Diameter: 102.4 mm (4.03 inch)
  • Length: 304.9 mm (12.00 inch)
  • Efficiency Beta 1000: 9 micron
  • Collapse Burst: 10.3 bar (149 psi)
  • Style: Cartridge
  • Media Type: Synthetic

Packaged Dimensions

  • Packaged Length: 0.160 m (6.40 inch)
  • Packaged Width: 0.153 m (6.10 inch)
  • Packaged Height: 0.318 m (12.70 inch)
  • Packaged Weight: 1.362 kg (3.00 lb)
  • Packaged Volume: 0.008 m3 (0.29 ft3)

Other Information

  • Country of Origin: United States
  • NMFC Code: 133320
  • HTS Code: 8421298090
  • UPC Code: 742330019764

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
CATERPILLAR 3I1712
VMC HF170061
