• Donaldson Hydraulic Filter, Cartridge - Donaldson P167516
1 1

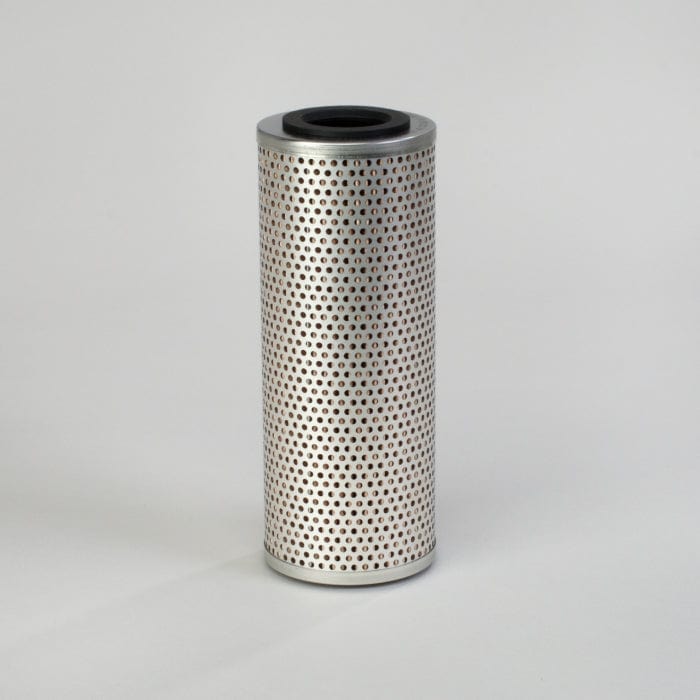

Hydraulic Filter, Cartridge - Donaldson P167516

Hydraulic Filter, Cartridge - Donaldson P167516

£17.45
£17.45
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P167516

Hydraulic Filter, Cartridge
Outer Diameter 3.52 inch (89.3 mm)
Inner Diameter 1.61 inch (41 mm)
Length 9.02 inch (229 mm)
Efficiency Beta 2 7 micron
Efficiency Beta 1000 23 micron
Collapse Burst 125 psi (8.6 bar)
Style Cartridge
Media Type Cellulose
View full details

Specifications

Attributes

  • Outer Diameter: 89.3 mm (3.52 inch)
  • Inner Diameter: 41 mm (1.61 inch)
  • Length: 229 mm (9.02 inch)
  • Efficiency Beta 2: 7 micron
  • Efficiency Beta 1000: 23 micron
  • Collapse Burst: 8.6 bar (125 psi)
  • Style: Cartridge
  • Media Type: Cellulose

Packaged Dimensions

  • Packaged Length: 0.108 m (4.30 inch)
  • Packaged Width: 0.103 m (4.10 inch)
  • Packaged Height: 0.245 m (9.80 inch)
  • Packaged Weight: 0.497 kg (1.10 lb)
  • Packaged Volume: 0.003 m3 (0.10 ft3)

Other Information

  • Country of Origin: Mexico
  • NMFC Code: 133320
  • HTS Code: 8421298090
  • UPC Code: 742330018385

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
CATERPILLAR 3I1916
GRAINGER 52YT82
INGERSOLL RAND 50939040
INGERSOLL RAND J10
NELSON 89831K
UNITED CENTRAL INDUSTRIAL SUPP 687312
VMC HF167516

Equipment Compatibility

Equipment Year Equipment Type Equipment Options Engine Engine Option
INGERSOLL RAND ECM450 - DRILLING EQUIPMENT - - ECM450 -
