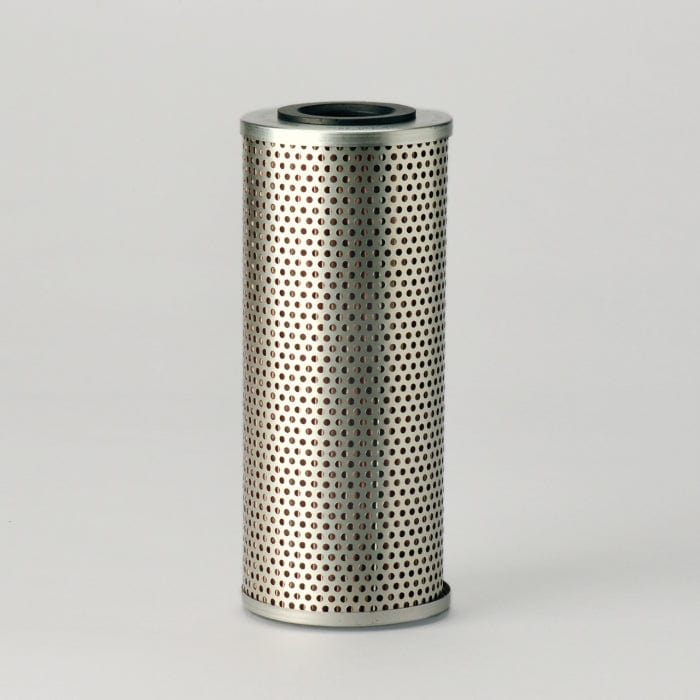

Hydraulic Filter, Cartridge - Donaldson P167514

Hydraulic Filter, Cartridge - Donaldson P167514

£28.52
£28.52
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P167514

Hydraulic Filter, Cartridge
Outer Diameter 3.84 inch (97.5 mm)
Inner Diameter 1.61 inch (41 mm)
Length 9.02 inch (229 mm)
Efficiency Beta 2 5 micron
Efficiency Beta 1000 24 micron
Collapse Burst 125 psi (8.6 bar)
Style Cartridge
Media Type Cellulose
Primary Application SCHROEDER K3
View full details

Specifications

Attributes

  • Outer Diameter: 97.5 mm (3.84 inch)
  • Inner Diameter: 41 mm (1.61 inch)
  • Length: 229 mm (9.02 inch)
  • Efficiency Beta 2: 5 micron
  • Efficiency Beta 1000: 24 micron
  • Collapse Burst: 8.6 bar (125 psi)
  • Style: Cartridge
  • Media Type: Cellulose
  • Primary Application: SCHROEDER K3

Packaged Dimensions

  • Packaged Length: 0.105 m (4.20 inch)
  • Packaged Width: 0.105 m (4.20 inch)
  • Packaged Height: 0.243 m (9.70 inch)
  • Packaged Weight: 0.531 kg (1.17 lb)
  • Packaged Volume: 0.003 m3 (0.10 ft3)

Other Information

  • Country of Origin: Mexico
  • NMFC Code: 133320
  • HTS Code: 8421298090
  • UPC Code: 742330018378

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
AC DELCO PF1085
AMERICAN PARTS 2190
AMERICAN PARTS 92419
ASTEC UNDERGROUND 3012605198
BIG A 92419
BIG A 2190
BLOUNT 120101R
BLOUNT 120121R
CAN-FLO F253NM
CARBOCOL 50343490
CATERPILLAR 3I0577
CATERPILLAR 3I1873
COMPACTION AMERICA 853531227
FLOW EZY 658308
FPC FPE2503N
GARDNER DENVER K3
GFK PSL0997B203
GFK PSL0997B003
GRAINGER 2NMT8
GRAINGER 52YT67
INGERSOLL RAND 50343490
INTRUPA IF7009
INTRUPA 83425
PTI HF4050BCB
PTI HF4050GFV
PTI HF4070BCB
SYSTEMS MATERIAL HANDLING HY376066
UNIT RIG EQUIPMENT 3000187
VICKERS 737560
VICKERS 737825
VMC HF167514

Equipment Compatibility

Equipment Year Equipment Type Equipment Options Engine Engine Option
GARDNER DENVER GDCM - DRILLING EQUIPMENT - - GDCM -
INGERSOLL RAND DA-45 - COMPACTOR - - DA-45 -
INGERSOLL RAND DM45HP - DRILLING EQUIPMENT - - DM45HP -
