• Donaldson Hydraulic Filter, Cartridge - Donaldson P166461
1 1

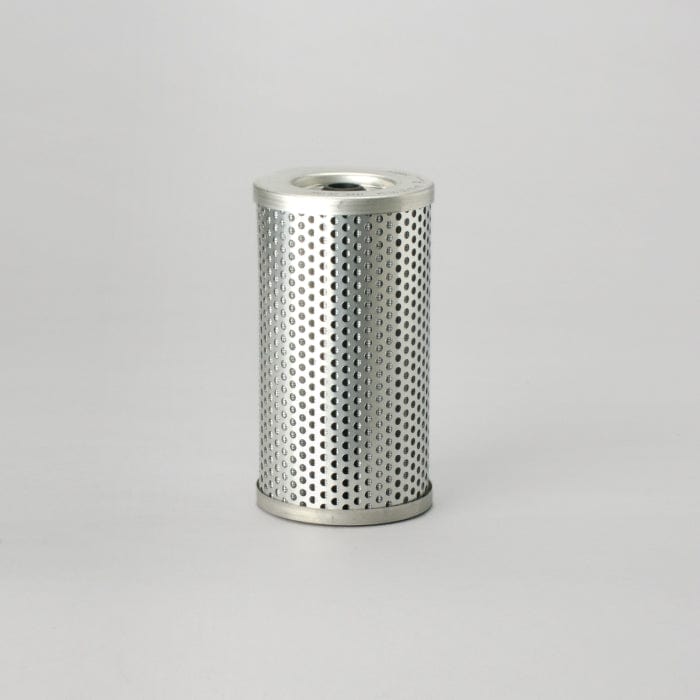

Hydraulic Filter, Cartridge - Donaldson P166461

Hydraulic Filter, Cartridge - Donaldson P166461

£41.41
£41.41
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P166461

Hydraulic Filter, Cartridge
Outer Diameter 4.37 inch (111 mm)
Inner Diameter 2.44 inch (62 mm)
Length 8.00 inch (203.2 mm)
Efficiency Beta 1000 23 micron
Collapse Burst 100 psi (6.9 bar)
Style Cartridge
Media Type Synthetic
View full details

Specifications

Attributes

  • Outer Diameter: 111 mm (4.37 inch)
  • Inner Diameter: 62 mm (2.44 inch)
  • Length: 203.2 mm (8.00 inch)
  • Efficiency Beta 1000: 23 micron
  • Collapse Burst: 6.9 bar (100 psi)
  • Style: Cartridge
  • Media Type: Synthetic

Packaged Dimensions

  • Packaged Length: 1.100 m (44.00 inch)
  • Packaged Width: 1.100 m (44.00 inch)
  • Packaged Height: 1.000 m (40.00 inch)
  • Packaged Weight: 0.606 kg (1.34 lb)
  • Packaged Volume: 0.003 m3 (0.11 ft3)

Other Information

  • Country of Origin: United States
  • NMFC Code: 133320
  • HTS Code: 8421298090
  • UPC Code: 742330017814

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
AC DELCO PF999
AGCO 1096246M91
ALLIS-CHALMERS 2698561
ALLIS-CHALMERS 269856
AMERICAN HOIST 9832608
AMERICAN PARTS 92499
AMERICAN PARTS 92549
AMERICAN PARTS 92537
BADGER JS108971
BIG A 92537
BIG A 92530
BIG A 92499
CASE/CASE IH 108971
CASE/CASE IH S232253
CASE/CASE IH S107791
CASE/CASE IH S109470
CASE/CASE IH S108971
CASE/CASE IH 232253
CATERPILLAR 3I0485
CATERPILLAR 3I0480
CATERPILLAR 3I0455
CATERPILLAR 3I1871
CEDARAPIDS 008710000410
CHAMPION ROAD 24097
CLEVELAND 24097
DEUTZ 70269856
DRESSER 141065
DRESSER 141064
EATON 6851961
EIMCO 69008879
FIAT 70269856
FIAT 73134404
FIAT 269856
FORD 9576P160508
FORD 9576P160658
GALION 141064
GALION D141064
GARDNER DENVER 5826901P
GARDNER DENVER 5826901
GROVE 605747
GROVE A051110
GROVE 4272700
GROVE 7437000180
HAVAM HD8770
HAVAM HD8778
HITACHI 269856
INGERSOLL RAND 35290444
INGERSOLL RAND 38490264
JOY 52769315
JOY 527693015
JOY 5276930015
KOMATSU 141064
KOMDRESCO SA 309235
KOMDRESCO SA 141064
KRALINATOR L404
KRALINATOR L432
KRALINATOR L441
LEROI 438461
MANITOWOC A051110
MANITOWOC 605747
MANITOWOC 427270
MANITOWOC 4272700
MARINE TRAVELIFT, INC. 605747
MARINE TRAVELIFT, INC. 805747
MASSEY FERGUSON 1051137M91
MASSEY FERGUSON 1096246M91
MASSEY FERGUSON 588135M1
MCCORMICK S232253
MCCORMICK 108971
MCCORMICK 232253
MI-JACK S109470
NEW HOLLAND 73134404
POSTAS YF1657
RUSTON BUCYRUS 46151732
RUSTON BUCYRUS 46151958
RUSTON BUCYRUS 46143400
RUSTON BUCYRUS 46151420
SHUTTLELIFT INC S109470
SHUTTLELIFT INC 605747
STEIGER 022773X
TEREX 46151420
TEREX 832471
TIMBERJACK 545417
TIMBERJACK 841121300
VMC HF166461
WALGAHN-MOTORENTECHN 00810888
WALGAHN-MOTORENTECHN 810888
WALGAHN-MOTORENTECHN 00810905
WALGAHN-MOTORENTECHN 00810900
WALGAHN-MOTORENTECHN 810905
WALGAHN-MOTORENTECHN 810900
YALE 6851961
YALE 6955977

Equipment Compatibility

Equipment Year Equipment Type Equipment Options Engine Engine Option
ALLIS-CHALMERS 8030 - TRACTOR - ALLIS-CHALMERS 649T -
ALLIS-CHALMERS 8050 - TRACTOR - ALLIS-CHALMERS 649I -
CASE/CASE IH 1085 - EXCAVATOR - - 1085 -
CASE/CASE IH 1085B - EXCAVATOR - - 1085B -
CASE/CASE IH 1086 - EXCAVATOR - - 1086 -
CASE/CASE IH 1086B - EXCAVATOR - - 1086B -
CASE/CASE IH 35D - EXCAVATOR TRACKED - - 35D -
CASE/CASE IH 40E - EXCAVATOR TRACKED - - 40E -
CASE/CASE IH 40F - EXCAVATOR - - 40F -
CASE/CASE IH 800C - EXCAVATOR TRACKED - - 800C -
CASE/CASE IH 880C - EXCAVATOR TRACKED - - 880C -
CASE/CASE IH 880D - EXCAVATOR TRACKED - - 880D -
KOMATSU A550 - GRADER - KOMATSU D505T -
KOMATSU A600 - GRADER - CASE/CASE IH DT466 -
KOMATSU A606 - GRADER - KOMATSU D505T -
