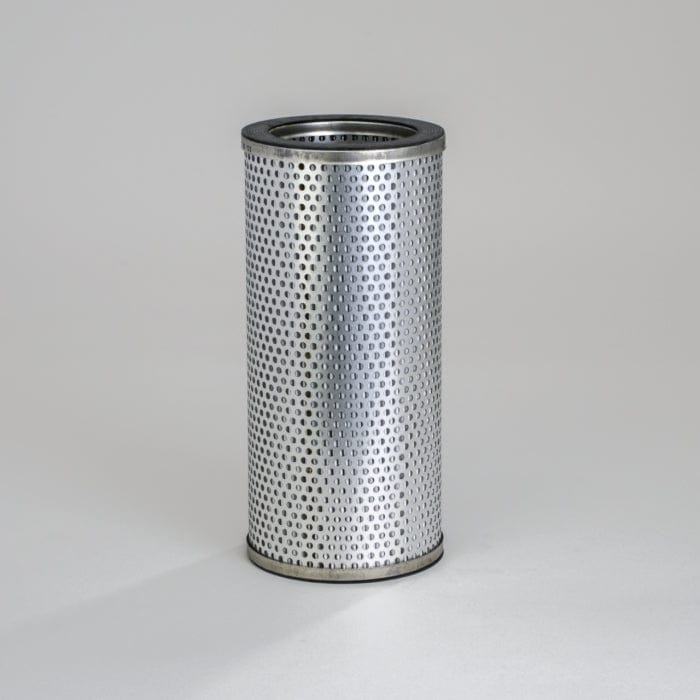

Hydraulic Filter, Cartridge - Donaldson P166204

Hydraulic Filter, Cartridge - Donaldson P166204

£86.92
£86.92
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P166204

Hydraulic Filter, Cartridge
Outer Diameter 5.62 inch (142.75 mm)
Inner Diameter 4.03 inch (102.36 mm)
Length 12.00 inch (304.8 mm)
Gasket OD 5.55 inch (141 mm)
Gasket ID 4.09 inch (104 mm)
Efficiency Beta 200 42 micron
Efficiency Beta 1000 50 micron
Collapse Burst 100 psi (6.9 bar)
Style Cartridge
Media Type Synthetic
View full details

Specifications

Attributes

  • Outer Diameter: 142.75 mm (5.62 inch)
  • Inner Diameter: 102.36 mm (4.03 inch)
  • Length: 304.8 mm (12.00 inch)
  • Gasket OD: 141 mm (5.55 inch)
  • Gasket ID: 104 mm (4.09 inch)
  • Efficiency Beta 200: 42 micron
  • Efficiency Beta 1000: 50 micron
  • Collapse Burst: 6.9 bar (100 psi)
  • Style: Cartridge
  • Media Type: Synthetic

Packaged Dimensions

  • Packaged Length: 0.155 m (6.20 inch)
  • Packaged Width: 0.160 m (6.40 inch)
  • Packaged Height: 0.320 m (12.80 inch)
  • Packaged Weight: 1.453 kg (3.20 lb)
  • Packaged Volume: 0.008 m3 (0.29 ft3)

Other Information

  • Country of Origin: United States
  • NMFC Code: 069100-04
  • HTS Code: 8421298090
  • UPC Code: 742330017661

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
CATERPILLAR 3I1912
VMC HF166204
