• Donaldson Hydraulic Filter, Cartridge - Donaldson P165251
1 1

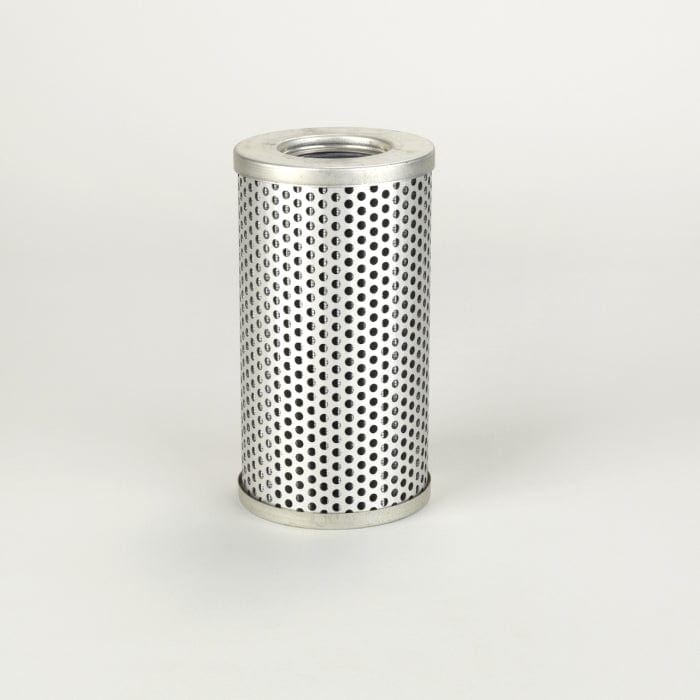

Hydraulic Filter, Cartridge - Donaldson P165251

Hydraulic Filter, Cartridge - Donaldson P165251

£48.61
£48.61
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P165251

Hydraulic Filter, Cartridge
Outer Diameter 4.39 inch (111.51 mm)
Inner Diameter 1.98 inch (50.39 mm)
Length 8.00 inch (203.2 mm)
Efficiency Beta 2 7 micron
Efficiency Beta 1000 23 micron
Collapse Burst 125 psi (8.6 bar)
Style Cartridge
Media Type Cellulose
View full details

Specifications

Attributes

  • Outer Diameter: 111.51 mm (4.39 inch)
  • Inner Diameter: 50.39 mm (1.98 inch)
  • Length: 203.2 mm (8.00 inch)
  • Efficiency Beta 2: 7 micron
  • Efficiency Beta 1000: 23 micron
  • Collapse Burst: 8.6 bar (125 psi)
  • Style: Cartridge
  • Media Type: Cellulose

Packaged Dimensions

  • Packaged Length: 0.123 m (4.90 inch)
  • Packaged Width: 0.120 m (4.80 inch)
  • Packaged Height: 0.218 m (8.70 inch)
  • Packaged Weight: 0.704 kg (1.55 lb)
  • Packaged Volume: 0.003 m3 (0.12 ft3)

Other Information

  • Country of Origin: United States
  • NMFC Code: 069100-06
  • HTS Code: 8421298090
  • UPC Code: 742330017166

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
BIG A 92584
BLOUNT 811086500
CATERPILLAR 811086500
CATERPILLAR 3I0682
KRALINATOR L864
LOESING 20200
LOESING 020200
PETTIBONE TJ811086500
TIMBERJACK 841153100
TIMBERJACK 811086500
TIMBERJACK 411531
VMC HF165251

Equipment Compatibility

Equipment Year Equipment Type Equipment Options Engine Engine Option
TIMBERJACK 350 - SKIDDER - - 350 -
TIMBERJACK 380 - SKIDDER - - 380 -
TIMBERJACK 450 - SKIDDER - - 450 -
