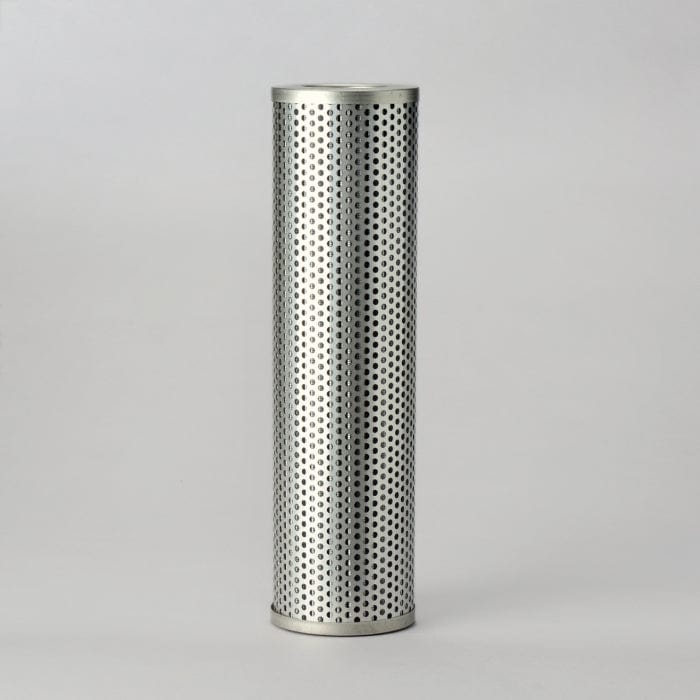

Hydraulic Filter, Cartridge - Donaldson P164699
Hydraulic Filter, Cartridge - Donaldson P164699
Regular price
£65.75
Regular price
Sale price
£65.75
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson P164699
Hydraulic Filter, Cartridge| Outer Diameter | 4.39 inch (111.51 mm) |
| Inner Diameter | 2.45 inch (62.23 mm) |
| Length | 15.98 inch (406 mm) |
| Efficiency Beta 1000 | 23 micron |
| Collapse Burst | 125 psi (8.6 bar) |
| Style | Cartridge |
| Series | HDK06 |
| Media Type | Synthetic |
Share
Collapsible content
Specifications
Attributes
- Outer Diameter: 111.51 mm (4.39 inch)
- Inner Diameter: 62.23 mm (2.45 inch)
- Length: 406 mm (15.98 inch)
- Efficiency Beta 1000: 23 micron
- Collapse Burst: 8.6 bar (125 psi)
- Style: Cartridge
- Series: HDK06
- Media Type: Synthetic
Packaged Dimensions
- Packaged Length: 0.120 m (4.80 inch)
- Packaged Width: 0.120 m (4.80 inch)
- Packaged Height: 0.415 m (16.60 inch)
- Packaged Weight: 1.226 kg (2.70 lb)
- Packaged Volume: 0.006 m3 (0.22 ft3)
Other Information
- Country of Origin: United States
- NMFC Code: 133320
- HTS Code: 8421298090
- UPC Code: 742330016527
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| AGCO | 74853388 | |
| ALLIS-CHALMERS | 4853338 | |
| AMERICAN PARTS | 92544 | |
| AMERICAN PARTS | 92543 | |
| ATLAS COPCO | 52263183 | |
| BADGER | 76102474 | |
| BIG A | 92527 | |
| BIG A | 92439 | |
| BIG A | 92544 | |
| BIG A | 92543 | |
| BOMAG | 31005666 | |
| BUHLER VERSATILE | 00063297 | |
| CASE/CASE IH | V63297 | |
| CASE/CASE IH | 105892 | |
| CASE/CASE IH | 104929 | |
| CASE/CASE IH | 116428 | |
| CASE/CASE IH | S116428 | |
| CASE/CASE IH | S104929 | |
| CASE/CASE IH | S105892 | |
| CATERPILLAR | 3I0629 | |
| CATERPILLAR | 3I0487 | |
| CATERPILLAR | 3I0482 | |
| CATERPILLAR | 3I0473 | |
| CATERPILLAR | 3I0457 | |
| CHARDONNET | 7216061600 | |
| DEUTZ | 74853388 | |
| DRESSER | 129748 | |
| EUCLID | 9066151 | |
| FAMEL | FA202H | |
| FIAT | 4853388 | |
| FIAT | 74853388 | |
| FMC | 3J8075 | |
| FORD | 9576P160216 | |
| FORD | 9576P160516 | |
| FORD | 9576P164699 | |
| FORD | 31P0146 | |
| GALION | D129748 | |
| GARDNER DENVER | 5991132 | |
| GARDNER DENVER | 5840396 | |
| GARDNER DENVER | 2109086 | |
| GARDNER DENVER | 2109094 | |
| GARDNER DENVER | 2117092 | |
| GRADALL | 90202212 | |
| GRADALL | 76102474 | |
| GRADALL | 77133069 | |
| GREYFRIARS | GHF7114 | |
| GROVE | 9437100249 | |
| GROVE | 1004512 | |
| GROVE | 7437000176 | |
| GROVE | 7437000177 | |
| GROVE | 7437000175 | |
| HAVAM | HD8780 | |
| HEIN-WERNER | 452850 | |
| HITACHI | 74853388 | |
| HITACHI | 4853388 | |
| HYSTER | 0256226 | |
| HYSTER | 256226 | |
| INGERSOLL RAND | 35290162 | |
| INGERSOLL RAND | 50693886 | |
| INGERSOLL RAND | 38480265 | |
| INGERSOLL RAND | 56945512 | |
| INGERSOLL RAND | 52263183 | |
| INGERSOLL RAND | 56920101 | |
| JOY | 7017010321 | |
| KALMAR | 74853388 | |
| KOEHRING | 31005666 | |
| KOEHRING | 853531241 | |
| KRALINATOR | L420 | |
| KRALINATOR | L434 | |
| LEROI | 438451 | |
| LETOURNEAU | 4068356 | |
| LINK BELT | 31P0146 | |
| LOESING | 20767 | |
| LOESING | 020767 | |
| LOESING | 021718 | |
| LOESING | 21718 | |
| MANITOWOC | 1004512 | |
| MARINE TRAVELIFT, INC. | 1004512 | |
| MCCORMICK | 104929 | |
| MCCORMICK | 105892 | |
| MCCORMICK | 116428 | |
| MINNPAR | H0050262 | |
| NACCO MATERIALS | 0256226 | |
| NACCO MATERIALS | 256226 | |
| NEW HOLLAND | 51036002 | |
| NEW HOLLAND | 74853388 | |
| NEW HOLLAND | 51036006 | |
| NEW HOLLAND | V63297 | |
| NEW HOLLAND | 31P0146 | |
| ORENSTEIN & KOPPEL | 1448900 | |
| ORENSTEIN & KOPPEL | 1448990 | |
| P & H | GH5840396 | |
| PETTIBONE | 00068076000 | |
| PETTIBONE | 68076 | |
| PETTIBONE | 068076 | |
| PETTIBONE | 68076000 | |
| ROBBINS | 1816562 | |
| RUSTON BUCYRUS | 46151425 | |
| SULLAIR | 235331 | |
| SULLAIR | P164699016140 | |
| SULLAIR | 704110 | |
| SULLAIR | 409795 | |
| SULLAIR | 241177 | |
| TAYLOR | 2404329 | |
| TEREX | 1448990 | |
| TORQUIP | 09066151 | |
| VERSATILE | V63297 | |
| VERSATILE | 63297 | |
| VMC | HF164699 | |
| WABCO | 4068356 | |
| WALGAHN-MOTORENTECHN | 810908 | |
| WALGAHN-MOTORENTECHN | 00810889 | |
| WALGAHN-MOTORENTECHN | 810889 | |
| WALGAHN-MOTORENTECHN | 00810907 | |
| WALGAHN-MOTORENTECHN | 00810908 | |
| WALGAHN-MOTORENTECHN | 00810902 | |
| WALGAHN-MOTORENTECHN | 810907 | |
| WALGAHN-MOTORENTECHN | 810902 | |
| WARNER & SWASEY | 76102474 |
Equipment Compatibility
| Equipment | Year | Equipment Type | Equipment Options | Engine | Engine Option |
|---|---|---|---|---|---|
| ATLAS COPCO DM45 | - | DRILLING EQUIPMENT | - | CATERPILLAR C18 | - |
| BOMAG K350 | - | COMPACTOR | - | CUMMINS NT855 | - |
| BOMAG K350P | - | COMPACTOR | - | CUMMINS NT855 | - |
| BOMAG K351 | - | COMPACTOR | - | - K351 | - |
| BOMAG K451 | - | COMPACTOR | - | - K451 | - |
| BOMAG K850 | - | COMPACTOR | - | - K850 | - |
| BOMAG K850P | - | COMPACTOR | - | - K850P | - |
| BOMAG K851 | - | COMPACTOR | - | - K851 | - |
| CASE/CASE IH 1280 | - | EXCAVATOR TRACKED | - | - 1280 | - |
| CASE/CASE IH 1280B | - | EXCAVATOR TRACKED | - | - 1280B | - |
| CASE/CASE IH 50D | - | EXCAVATOR TRACKED | - | - 50D | - |
| CASE/CASE IH 50E | - | EXCAVATOR TRACKED | - | - 50E | - |
| CASE/CASE IH 80B | - | EXCAVATOR | - | - 80B | - |
| HYSTER H40000E | - | FORKLIFT | - | - H40000E | - |
| HYSTER H880 | - | FORKLIFT | - | PERKINS 12T1 | - |
| INGERSOLL RAND DA-45 | - | COMPACTOR | - | - DA-45 | - |
| NEW HOLLAND 1150 | - | TRACTOR | - | - 1150 | - |
| NEW HOLLAND 1156 | - | TRACTOR | - | - 1156 | - |
| VERSATILE 1150 | - | TRACTOR | - | - 1150 | - |
