• Donaldson Hydraulic Filter, Cartridge - Donaldson P164585
1 1

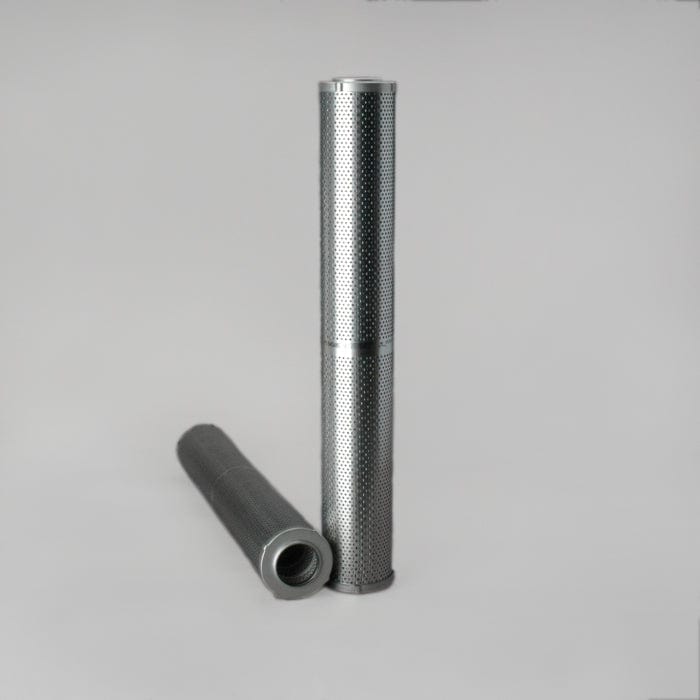

Hydraulic Filter, Cartridge - Donaldson P164585

Hydraulic Filter, Cartridge - Donaldson P164585

£135.52
£135.52
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P164585

Hydraulic Filter, Cartridge
Outer Diameter 3.75 inch (95.25 mm)
Inner Diameter 2.21 inch (56.26 mm)
Length 25.53 inch (648.46 mm)
Efficiency Beta 1000 7 micron
Collapse Burst 200 psi (13.8 bar)
Style Cartridge
Series HPK05
Media Type Synthetic
View full details

Specifications

Attributes

  • Outer Diameter: 95.25 mm (3.75 inch)
  • Inner Diameter: 56.26 mm (2.21 inch)
  • Length: 648.46 mm (25.53 inch)
  • Efficiency Beta 1000: 7 micron
  • Collapse Burst: 13.8 bar (200 psi)
  • Style: Cartridge
  • Series: HPK05
  • Media Type: Synthetic

Packaged Dimensions

  • Packaged Length: 0.108 m (4.30 inch)
  • Packaged Width: 0.110 m (4.40 inch)
  • Packaged Height: 0.663 m (26.50 inch)
  • Packaged Weight: 1.964 kg (4.33 lb)
  • Packaged Volume: 0.008 m3 (0.29 ft3)

Other Information

  • Country of Origin: United States
  • NMFC Code: 069100-09
  • HTS Code: 8421298090
  • UPC Code: 742330016381

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
BEHRINGER BE94002606A
BOSCH-REXROTH R928016918
CATERPILLAR 3I0622
COMEX P9400D26N6
DIAGNETICS LPB426B03
DIAGNETICS LPB426V06
DIAGNETICS LPB426B06
EPPENSTEINER 169400H6LL650YP
EPPENSTEINER 169400VH6SLS000P
EPPENSTEINER 169400VH6XLS000M
EUCLID 4099657
GFK PSL2694B006
LIEBHERR 13055H1
PTI P94150HFB
VMC HF164585
