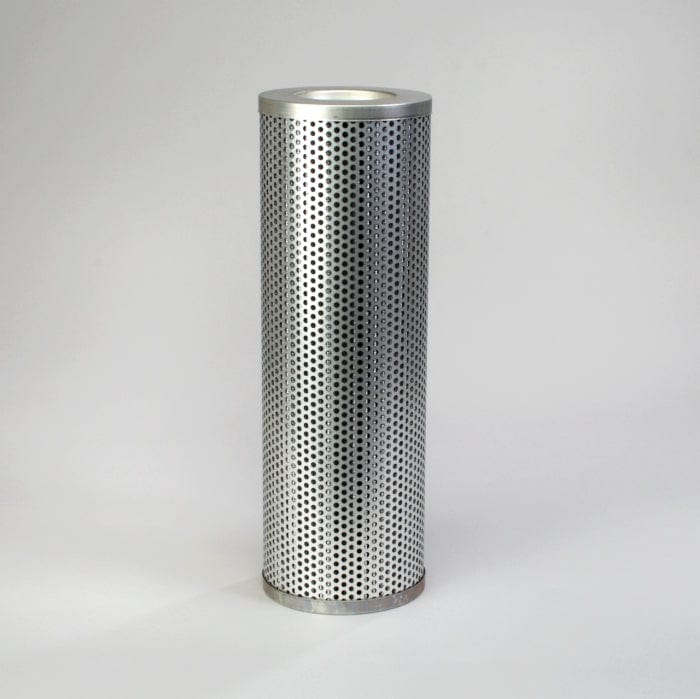

Hydraulic Filter, Cartridge - Donaldson P164405

Hydraulic Filter, Cartridge - Donaldson P164405

£172.73
£172.73
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P164405

Hydraulic Filter, Cartridge
Outer Diameter 6.00 inch (152.5 mm)
Inner Diameter 3.41 inch (86.5 mm)
Length 18.00 inch (457.2 mm)
Efficiency Beta 1000 4 micron
Collapse Burst 125 psi (8.6 bar)
Style Cartridge
Series HFK08
Media Type Synthetic
View full details

Specifications

Attributes

  • Outer Diameter: 152.5 mm (6.00 inch)
  • Inner Diameter: 86.5 mm (3.41 inch)
  • Length: 457.2 mm (18.00 inch)
  • Efficiency Beta 1000: 4 micron
  • Collapse Burst: 8.6 bar (125 psi)
  • Style: Cartridge
  • Series: HFK08
  • Media Type: Synthetic

Packaged Dimensions

  • Packaged Length: 1.050 m (42.00 inch)
  • Packaged Width: 1.050 m (42.00 inch)
  • Packaged Height: 1.063 m (42.50 inch)
  • Packaged Weight: 3.357 kg (7.40 lb)
  • Packaged Volume: 0.012 m3 (0.44 ft3)

Other Information

  • Country of Origin: United States
  • NMFC Code: 069100-09
  • HTS Code: 8421298090
  • UPC Code: 742330016213

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
CATERPILLAR 3I0613
