• Donaldson Hydraulic Filter, Cartridge - Donaldson P164241
1 1

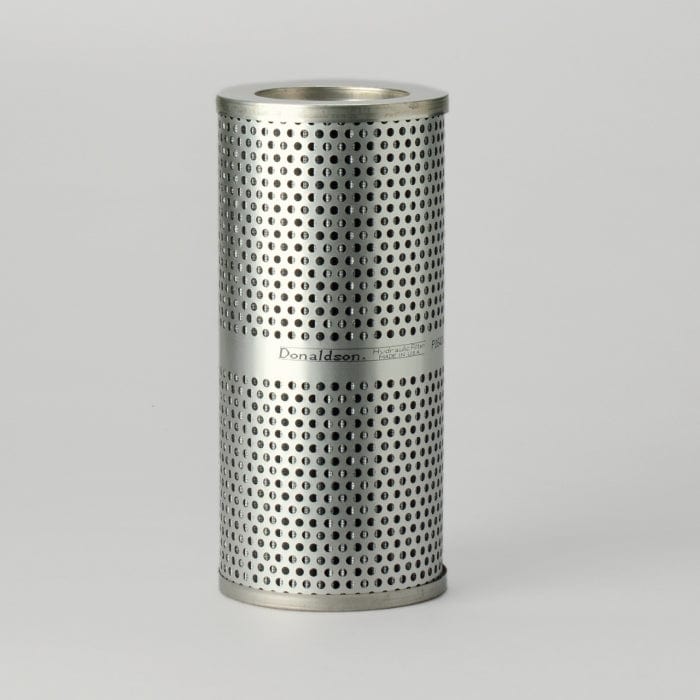

Hydraulic Filter, Cartridge - Donaldson P164241

Hydraulic Filter, Cartridge - Donaldson P164241

£47.63
£47.63
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P164241

Hydraulic Filter, Cartridge
View full details

Specifications

Attributes

  • Outer Diameter: 128.8 mm (5.07 inch)
  • Inner Diameter: 85 mm (3.35 inch)
  • Length: 278.9 mm (10.98 inch)
  • Efficiency Beta 1000: 13 micron
  • Collapse Burst: 6.9 bar (100 psi)
  • Style: Cartridge
  • Media Type: Synthetic

Packaged Dimensions

  • Packaged Length: 1.200 m (48.00 inch)
  • Packaged Width: 1.050 m (42.00 inch)
  • Packaged Height: 0.994 m (39.75 inch)
  • Packaged Weight: 1.096 kg (2.42 lb)
  • Packaged Volume: 0.006 m3 (0.22 ft3)

Other Information

  • Country of Origin: United States
  • NMFC Code: 069100-09
  • HTS Code: 8421298090
  • UPC Code: 742330016015

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
AMERICAN MOTORS CORPORATION SFH5461
BIG A 91194
CATERPILLAR 1U2096
CATERPILLAR 3I1438
CATERPILLAR 413134
CATERPILLAR HE27030
CATERPILLAR 3I0601
CATERPILLAR 9Y4523
CATERPILLAR 9J5461
CATERPILLAR 81400752
CATERPILLAR 9J750
CATERPILLAR 9J0750
CHAMP P5009
COOPERS HEM6019
EXMAN SFH5461
FAMEL FA201H
FORD 9576P164241
FSA FO1783
GREYFRIARS GHF7115
HAVAM HD5461
IACOVOU 9J5461
INGERSOLL RAND 9J5461
KNECHT HX78
KRALINATOR L894
LOESING 25100
ORENSTEIN & KOPPEL 103875
POSTAS YF1533
TEREX 103875
TIM 1U2096
TIM 9J5461
TIM 9J0750
UNITED CENTRAL INDUSTRIAL SUPP 688912
UNITED CENTRAL INDUSTRIAL SUPP 687192
VMC HF164241
VMC LF164241
WALGAHN-MOTORENTECHN 811817
WALGAHN-MOTORENTECHN 810972
WALGAHN-MOTORENTECHN 00810972

Equipment Compatibility

Equipment Year Equipment Type Equipment Options Engine Engine Option
CATERPILLAR R1600 - LOADER WHEELED - - R1600 -
CATERPILLAR R1700 II - LOADER WHEELED - - R1700 II -
CATERPILLAR R2900 - LOADER WHEELED - - R2900 -
