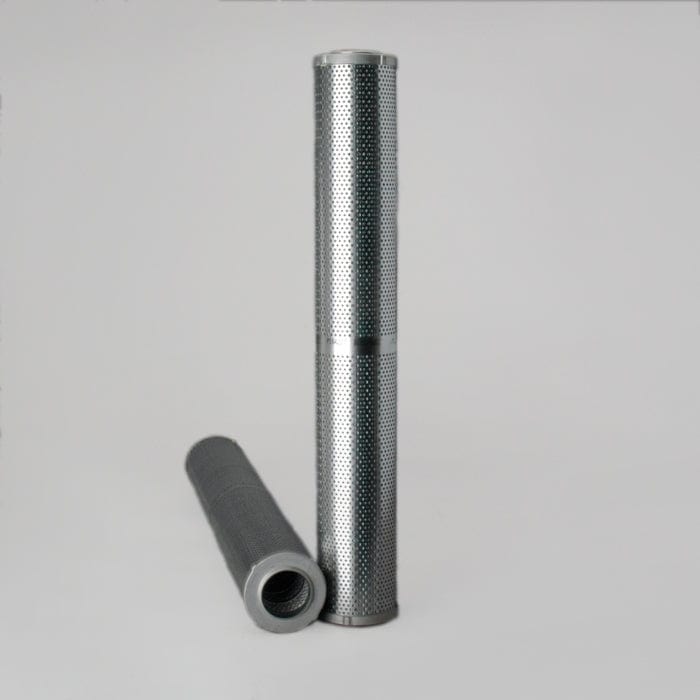

Hydraulic Filter, Cartridge - Donaldson P164227

Hydraulic Filter, Cartridge - Donaldson P164227

£155.39
£155.39
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P164227

Hydraulic Filter, Cartridge
Outer Diameter 3.74 inch (95 mm)
Inner Diameter 2.21 inch (56.26 mm)
Length 25.53 inch (648.5 mm)
Efficiency Beta 1000 9 micron
Collapse Burst 149 psi (10.3 bar)
Style Cartridge
Series HPK05
Media Type Synthetic
View full details

Specifications

Attributes

  • Outer Diameter: 95 mm (3.74 inch)
  • Inner Diameter: 56.26 mm (2.21 inch)
  • Length: 648.5 mm (25.53 inch)
  • Efficiency Beta 1000: 9 micron
  • Collapse Burst: 10.3 bar (149 psi)
  • Style: Cartridge
  • Series: HPK05
  • Media Type: Synthetic

Packaged Dimensions

  • Packaged Length: 0.115 m (4.60 inch)
  • Packaged Width: 0.118 m (4.70 inch)
  • Packaged Height: 0.668 m (26.70 inch)
  • Packaged Weight: 1.796 kg (3.96 lb)
  • Packaged Volume: 0.009 m3 (0.33 ft3)

Other Information

  • Country of Origin: United States
  • NMFC Code: 069100-06
  • HTS Code: 8421298090
  • UPC Code: 742330015995

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
BEHRINGER BE94002612A
BOSCH-REXROTH R928016922
CATERPILLAR 3I0599
DIAGNETICS LPB426B12
DIAGNETICS LPB426V12
EPPENSTEINER 169400H10LL650YP
EPPENSTEINER 169400VH10XLS000M
EPPENSTEINER 169400VH10SLS000P
GFK PSL2694B012
GFK PSL2694B212
MP FILTRI MP5412
MP FILTRI MP3907
MP FILTRI MP3906
PTI P94150KFB
SWIFT SF94002612UM
VMC HF164227
WALGAHN-MOTORENTECHN 810971
WALGAHN-MOTORENTECHN 00810971
