• Donaldson Hydraulic Filter, Cartridge - Donaldson P163448
1 1

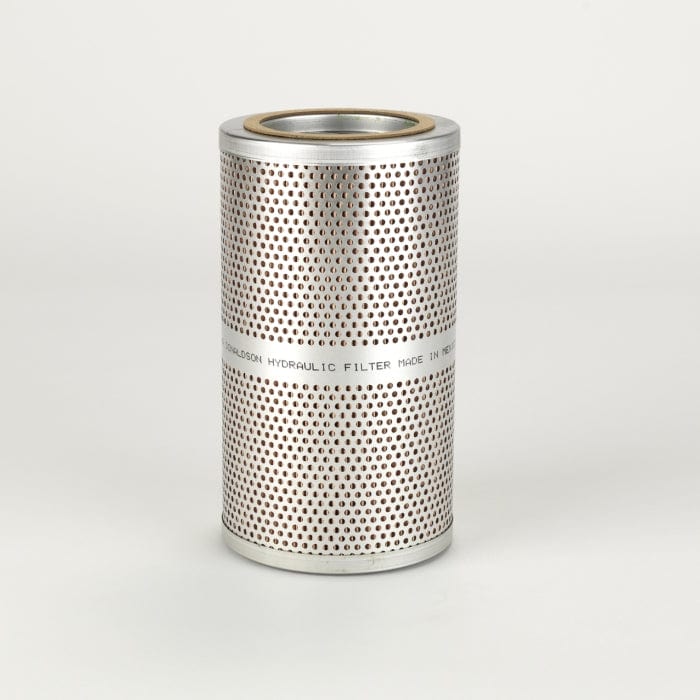

Hydraulic Filter, Cartridge - Donaldson P163448

Hydraulic Filter, Cartridge - Donaldson P163448

£28.39
£28.39
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P163448

Hydraulic Filter, Cartridge
View full details

Specifications

Attributes

  • Outer Diameter: 128.78 mm (5.07 inch)
  • Inner Diameter: 85 mm (3.35 inch)
  • Length: 228.6 mm (9.00 inch)
  • Efficiency Beta 2: 5 micron
  • Efficiency Beta 1000: 24 micron
  • Collapse Burst: 5.2 bar (75 psi)
  • Style: Cartridge
  • Media Type: Cellulose

Packaged Dimensions

  • Packaged Length: 0.140 m (5.60 inch)
  • Packaged Width: 0.138 m (5.50 inch)
  • Packaged Height: 0.283 m (11.30 inch)
  • Packaged Weight: 0.772 kg (1.70 lb)
  • Packaged Volume: 0.006 m3 (0.20 ft3)

Other Information

  • Country of Origin: Mexico
  • NMFC Code: 069100-06
  • HTS Code: 8421298090
  • UPC Code: 742330015544

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
AMERICAN PARTS 92178
AMERICAN PARTS 2096
BIG A 92178
CATERPILLAR 3I0564
DRESSER VS7413
FUNK 4003488
HYSTER SKS446432
KOBELCO 2446U127
KOMATSU DA2980
KOMATSU WA9652
KOMDRESCO SA WA9652
KRALINATOR L834
LETOURNEAU DA2980
LETOURNEAU 96522
LETOURNEAU WA96522
LETOURNEAU WA96521
LETOURNEAU WA9652
LHA TIE300101
UNITED CENTRAL INDUSTRIAL SUPP 687144
VMC HF163448
WABCO 96522
WABCO P555
WABCO WA96523
WABCO WA9652
WABCO VS7413
WABCO DA2980
WALGAHN-MOTORENTECHN 810951
WALGAHN-MOTORENTECHN 00810951
YALE 2080764

Equipment Compatibility

Equipment Year Equipment Type Equipment Options Engine Engine Option
KOBELCO LK200 - LOADER WHEELED - NISSAN FD3304 -
KOBELCO LK400 - LOADER WHEELED - NISSAN FD6 -
KOBELCO LK500 - LOADER WHEELED - NISSAN FD6T -
KOBELCO LK500A - LOADER WHEELED - - LK500A -
KOMATSU 252FT - SCRAPER FRONT ENGINE - 252FT -
