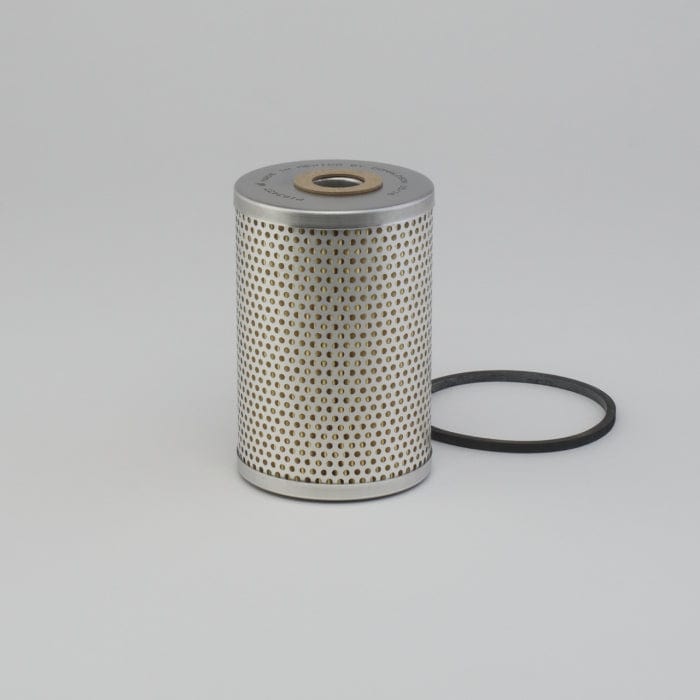

Hydraulic Filter, Cartridge - Donaldson P163437
Hydraulic Filter, Cartridge - Donaldson P163437
Regular price
£19.07
Regular price
Sale price
£19.07
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson P163437
Hydraulic Filter, Cartridge| Outer Diameter | 4.00 inch (101.7 mm) |
| Inner Diameter | 1.06 inch (26.9 mm) |
| Length | 6.00 inch (152.5 mm) |
| Efficiency Beta 2 | 9 micron |
| Efficiency Beta 1000 | 26 micron |
| Collapse Burst | 75 psi (5.2 bar) |
| Style | Cartridge |
| Media Type | Cellulose |
Share
Collapsible content
Specifications
Attributes
- Outer Diameter: 101.7 mm (4.00 inch)
- Inner Diameter: 26.9 mm (1.06 inch)
- Length: 152.5 mm (6.00 inch)
- Efficiency Beta 2: 9 micron
- Efficiency Beta 1000: 26 micron
- Collapse Burst: 5.2 bar (75 psi)
- Style: Cartridge
- Media Type: Cellulose
Packaged Dimensions
- Packaged Length: 0.108 m (4.33 inch)
- Packaged Width: 0.108 m (4.33 inch)
- Packaged Height: 0.167 m (6.69 inch)
- Packaged Weight: 0.443 kg (0.98 lb)
- Packaged Volume: 0.002 m3 (0.07 ft3)
Other Information
- Country of Origin: Mexico
- NMFC Code: 069100-06
- HTS Code: 8421298090
- UPC Code: 742330015469
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| AC DELCO | PF2019 | |
| ALLIS-CHALMERS | 30340350 | |
| ALLIS-CHALMERS | 62304949 | |
| ALLIS-CHALMERS | 062304949 | |
| ALLIS-CHALMERS | 3056509 | |
| CARBOCOL | PT82HD10 | |
| CASE/CASE IH | G102111 | |
| CATERPILLAR | 3I0556 | |
| INGERSOLL RAND | 35107424 | |
| KNECHT | OX88D | |
| MACK | 236GB122L | |
| MACK | 43SB36L | |
| MACK | 43SB37L | |
| MACK | 236GB238L | |
| MCCORMICK | G101902 | |
| MCCORMICK | G35446 | |
| ORENSTEIN & KOPPEL | 103868 | |
| TEREX | 103868 | |
| VMC | LF163437 | |
| VMC | HF163437 | |
| WALGAHN-MOTORENTECHN | 00810936 | |
| WALGAHN-MOTORENTECHN | 810936 |
Equipment Compatibility
| Equipment | Year | Equipment Type | Equipment Options | Engine | Engine Option |
|---|---|---|---|---|---|
| CASE/CASE IH 1150B | - | TRACTOR TRACKED | - | CASE/CASE IH 451BD | - |
| CASE/CASE IH 1150C | - | TRACTOR TRACKED | - | - 1150C | - |
| CASE/CASE IH 450B | - | TRACTOR TRACKED | - | - 450B | - |
| CASE/CASE IH 455B | - | TRACTOR TRACKED | - | - 455B | - |
| CASE/CASE IH 850B | - | TRACTOR TRACKED | - | - 850B | - |
| CASE/CASE IH 850C | - | TRACTOR TRACKED | - | - 850C | - |
| CASE/CASE IH 855C | - | TRACTOR TRACKED | - | - 855C | - |
| INGERSOLL RAND D1750 | - | COMPRESSOR | - | DETROIT DIESEL 12V-71N | - |
| INGERSOLL RAND D750 | - | COMPRESSOR | - | CUMMINS V903 | - |
| INGERSOLL RAND DXL1050 | - | COMPRESSOR | - | CUMMINS V903 | - |
| INGERSOLL RAND DXL1100H | - | COMPRESSOR | - | DETROIT DIESEL 12V-71 | - |
| INGERSOLL RAND DXL1200 | - | COMPRESSOR | - | DETROIT DIESEL 12V-71 | - |
| INGERSOLL RAND DXL1200S | - | COMPRESSOR | - | DETROIT DIESEL 12V-71 | - |
| INGERSOLL RAND DXL1400 | - | COMPRESSOR | - | DETROIT DIESEL 12V-71 | - |
| INGERSOLL RAND DXL1400S | - | COMPRESSOR | - | DETROIT DIESEL 12V-71 | - |
| INGERSOLL RAND DXL600HS | - | COMPRESSOR | - | - DXL600HS | - |
| INGERSOLL RAND DXL750S | - | COMPRESSOR | - | - DXL750S | - |
| INGERSOLL RAND DXL850S | - | COMPRESSOR | - | - DXL850S | - |
| INGERSOLL RAND DXL90 | - | COMPRESSOR | - | CUMMINS V903 | - |
| INGERSOLL RAND SPA-300 | - | COMPRESSOR | - | - SPA-300 | - |
| INGERSOLL RAND SPA-300V | - | COMPRESSOR | - | - SPA-300V | - |
| INGERSOLL RAND SPA-350 | - | COMPRESSOR | - | - SPA-350 | - |
| INGERSOLL RAND SPA-350V | - | COMPRESSOR | - | - SPA-350V | - |
