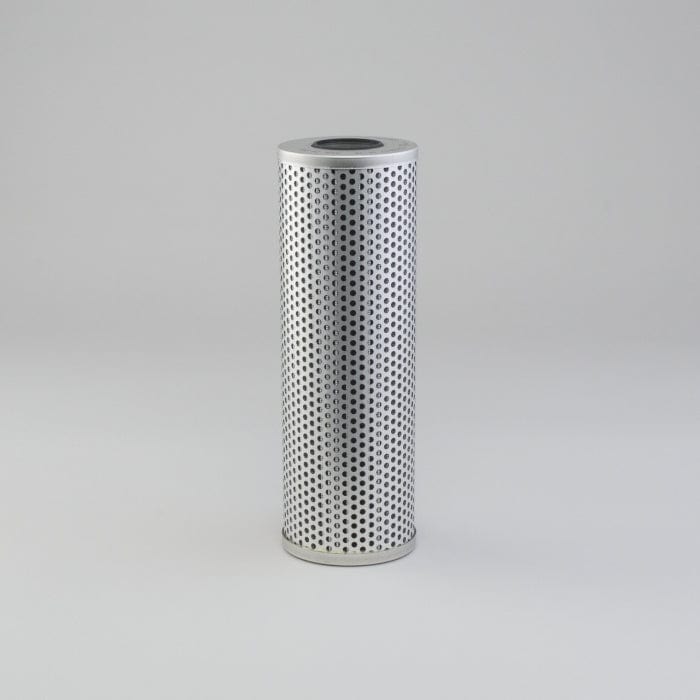

Hydraulic Filter, Cartridge - Donaldson P161969

Hydraulic Filter, Cartridge - Donaldson P161969

£65.33
£65.33
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P161969

Hydraulic Filter, Cartridge
Outer Diameter 4.37 inch (111 mm)
Inner Diameter 1.87 inch (47.4 mm)
Length 13.00 inch (330.2 mm)
Efficiency Beta 2 9 micron
Efficiency Beta 1000 26 micron
Collapse Burst 49 psi (3.4 bar)
Style Cartridge
Media Type Cellulose
View full details

Specifications

Attributes

  • Outer Diameter: 111 mm (4.37 inch)
  • Inner Diameter: 47.4 mm (1.87 inch)
  • Length: 330.2 mm (13.00 inch)
  • Efficiency Beta 2: 9 micron
  • Efficiency Beta 1000: 26 micron
  • Collapse Burst: 3.4 bar (49 psi)
  • Style: Cartridge
  • Media Type: Cellulose

Packaged Dimensions

  • Packaged Length: 0.120 m (4.80 inch)
  • Packaged Width: 0.118 m (4.70 inch)
  • Packaged Height: 0.343 m (13.70 inch)
  • Packaged Weight: 1.076 kg (2.37 lb)
  • Packaged Volume: 0.005 m3 (0.18 ft3)

Other Information

  • Country of Origin: United States
  • NMFC Code: 133320
  • HTS Code: 8421298090
  • UPC Code: 742330014950

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
CATERPILLAR 0773092
CATERPILLAR 1206666
CATERPILLAR 3I0523
CATERPILLAR 773092
CATERPILLAR 7R4344
RAYGO 0773092
RAYGO 7R4344
VMC HF161969
