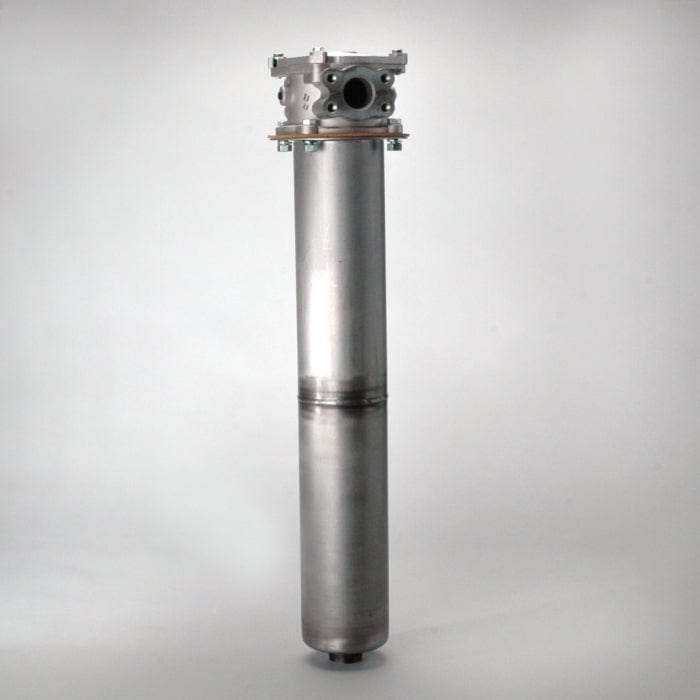

Hydraulic Filter Assembly - Donaldson P574237

Hydraulic Filter Assembly - Donaldson P574237

£760.91
£760.91
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P574237

Hydraulic Filter Assembly
View full details

Specifications

Attributes

  • Inlet Size: 1 1/2 SAE 4 Bolt Code 61
  • Outlet Size: 1 1/2 NPT
  • Overall Length: 810 mm (31.89 inch)
  • Bypass Valve: Yes
  • Bypass Valve Setting LR: 3.5 bar (51 psi)
  • Series: WL16

Packaged Dimensions

  • Packaged Length: 0.831 m (33.25 inch)
  • Packaged Width: 0.200 m (8.00 inch)
  • Packaged Height: 0.202 m (8.06 inch)
  • Packaged Weight: 7.309 kg (16.10 lb)
  • Packaged Volume: 0.035 m3 (1.24 ft3)

Other Information

  • Country of Origin: United States
  • NMFC Code: 069100-05
  • HTS Code: 8421298090
  • UPC Code: 742330977675
