• Donaldson Hydraulic Filler Cap - Donaldson P171848
1 1

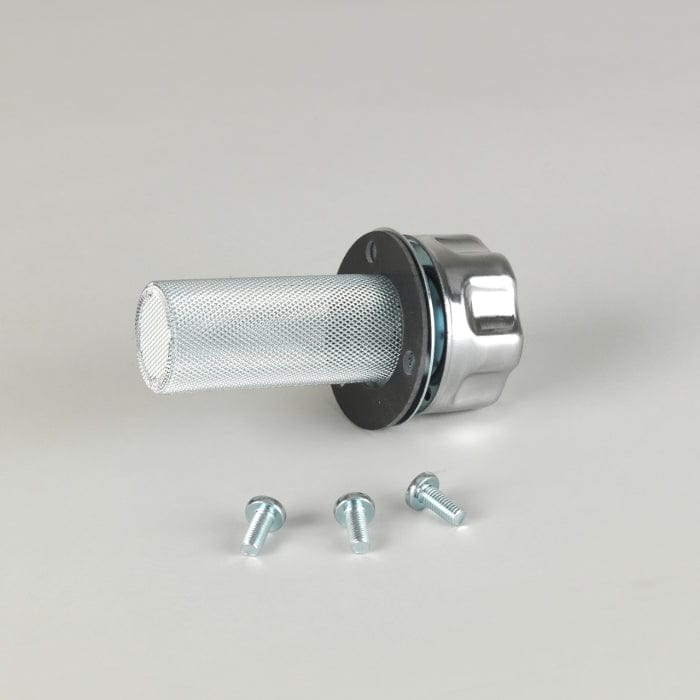

Hydraulic Filler Cap - Donaldson P171848

Hydraulic Filler Cap - Donaldson P171848

£10.41
£10.41
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P171848

Hydraulic Filler Cap
Outer Diameter 1.82 inch (46.3 mm)
Length 2.52 inch (64 mm)
Height 1.3 inch (33.1 mm)
Flange Diameter 2.01 inch (51 mm)
Bolt Hole Diameter 0.22 inch (5.5 mm)
Bolt Hole Circle Diameter 1.61 inch (41 mm)
Number of Bolt Holes 3
Efficiency Beta 2 10 micron
View full details

Specifications

Attributes

  • Outer Diameter: 46.3 mm (1.82 inch)
  • Length: 64 mm (2.52 inch)
  • Height: 33.1 mm (1.3 inch)
  • Flange Diameter: 51 mm (2.01 inch)
  • Bolt Hole Diameter: 5.5 mm (0.22 inch)
  • Bolt Hole Circle Diameter: 41 mm (1.61 inch)
  • Number of Bolt Holes: 3
  • Efficiency Beta 2: 10 micron

Packaged Dimensions

  • Packaged Length: 0.059 m (2.36 inch)
  • Packaged Width: 0.059 m (2.36 inch)
  • Packaged Height: 0.099 m (3.94 inch)
  • Packaged Weight: 0.105 kg (0.23 lb)
  • Packaged Volume: 0.000 m3 (0.01 ft3)

Other Information

  • Country of Origin: Italy
  • NMFC Code: 069100-09
  • HTS Code: 8421392590
  • UPC Code: 742330022993

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
F.B.O. TCO301
MODINA TM150G65
MP FILTRI TA1046C65
UCC HYDRAULICS UCAB138010
