• Donaldson Head Assembly, Lube - Donaldson P174777
1 1

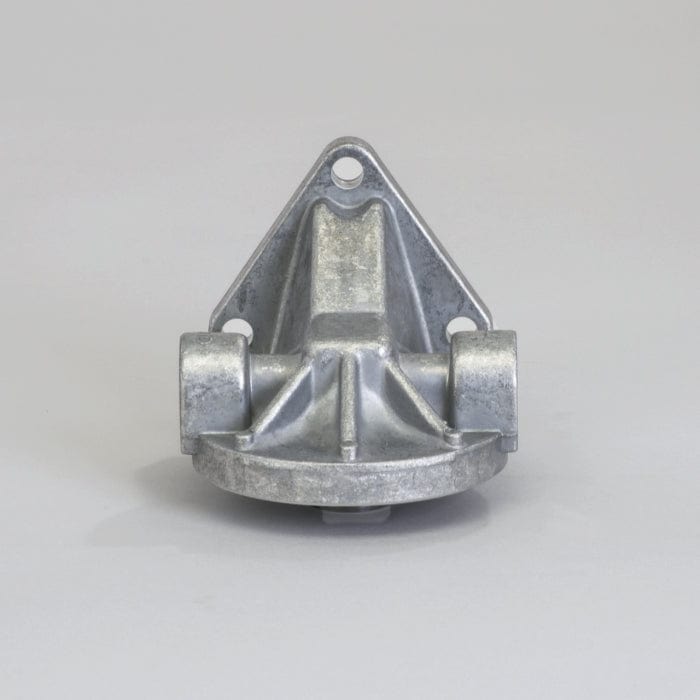

Head Assembly, Lube - Donaldson P174777

Head Assembly, Lube - Donaldson P174777

£311.97
£311.97
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P174777

Head Assembly, Lube
View full details

Specifications

Attributes

  • Length: 132 mm (5.20 inch)
  • Height: 91 mm (3.58 inch)
  • Inlet Size: 3/8 NPT
  • Outlet Size: 3/8 NPT
  • Filter-to-Head Thread: 1 3/8-16 UN

Packaged Dimensions

  • Packaged Length: 0.177 m (7.09 inch)
  • Packaged Width: 0.167 m (6.69 inch)
  • Packaged Height: 0.118 m (4.72 inch)
  • Packaged Weight: 0.917 kg (2.02 lb)
  • Packaged Volume: 0.004 m3 (0.13 ft3)

Other Information

  • Country of Origin: United States
  • NMFC Code: 133320
  • HTS Code: 8421999099
  • UPC Code: 742330081631

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
CASE/CASE IH 572499C1
JOHN DEERE AR10049S
LEYLAND-DAF (LDV) C257434
LEYLAND-DAF (LDV) C3304173
SISU 836340712
THERMO KING 3010184
