• Donaldson Head Assembly, Hydraulic - Donaldson P767095
1 1

Head Assembly, Hydraulic - Donaldson P767095

Head Assembly, Hydraulic - Donaldson P767095

£193.36
£193.36
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

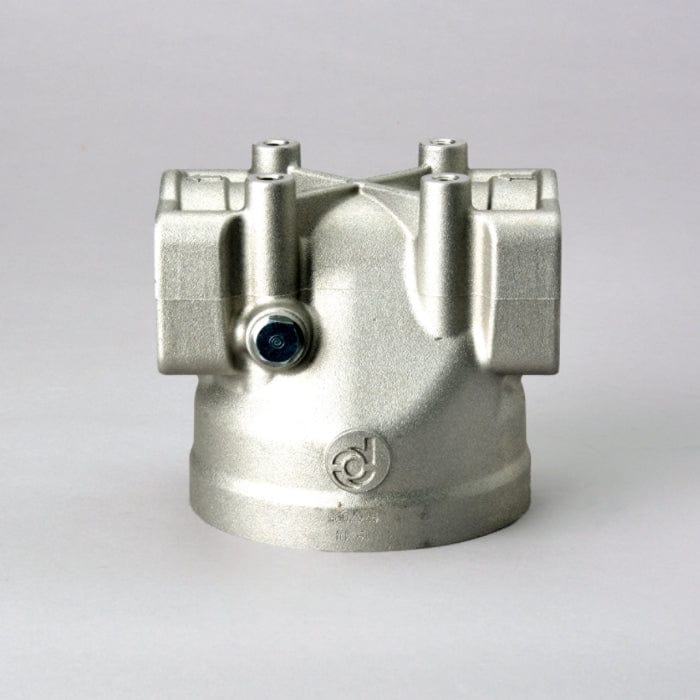

Donaldson P767095

Head Assembly, Hydraulic
View full details

Specifications

Attributes

  • Length: 161 mm (6.34 inch)
  • Height: 145 mm (5.71 inch)
  • Inlet Size: 2 SAE 4 Bolt Code 61
  • Outlet Size: 2 SAE 4 Bolt Code 61
  • Filter-to-Head Thread: M130 x 2
  • Bypass Valve: Yes
  • Bypass Valve Setting LR: 3.45 bar (50 psi)
  • Series: FLK125

Packaged Dimensions

  • Packaged Length: 0.158 m (6.30 inch)
  • Packaged Width: 0.158 m (6.30 inch)
  • Packaged Height: 0.148 m (5.91 inch)
  • Packaged Weight: 2.460 kg (5.42 lb)
  • Packaged Volume: 0.004 m3 (0.14 ft3)

Other Information

  • Country of Origin: Italy
  • NMFC Code: 133320
  • HTS Code: 8421999099
  • UPC Code: 742330980125
