• Donaldson Head Assembly, Hydraulic - Donaldson P762766
1 1

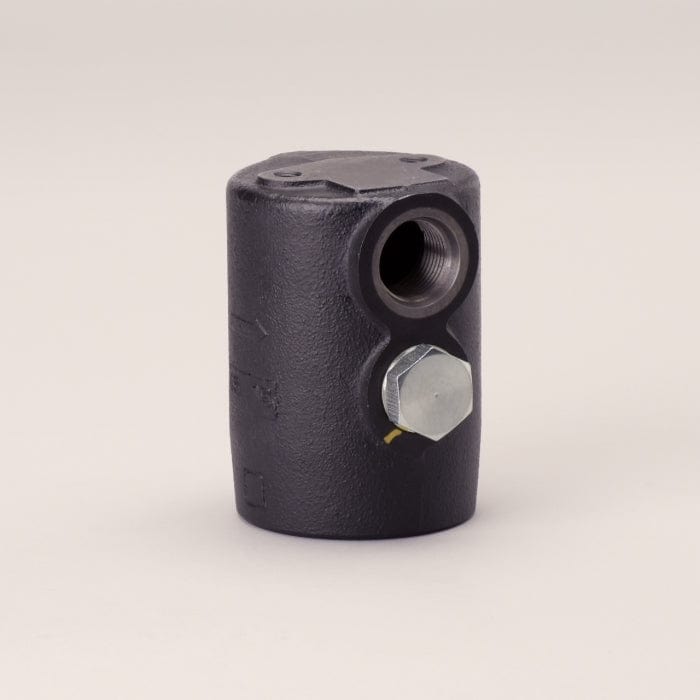

Head Assembly, Hydraulic - Donaldson P762766

Head Assembly, Hydraulic - Donaldson P762766

£113.55
£113.55
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P762766

Head Assembly, Hydraulic
View full details

Specifications

Attributes

  • Reverse Flow Check Valve: No
  • Length: 94 mm (3.70 inch)
  • Height: 114 mm (4.49 inch)
  • Inlet Size: SAE-12
  • Outlet Size: SAE-12
  • Filter-to-Head Thread: M68 x 1.5
  • Bypass Valve: Yes
  • Bypass Valve Setting LR: 6 bar (87 psi)
  • Series: FPK02

Packaged Dimensions

  • Packaged Length: 0.105 m (4.20 inch)
  • Packaged Width: 0.105 m (4.20 inch)
  • Packaged Height: 0.123 m (4.90 inch)
  • Packaged Weight: 2.200 kg (4.85 lb)
  • Packaged Volume: 0.001 m3 (0.05 ft3)

Other Information

  • Country of Origin: Italy
  • NMFC Code: 133320
  • HTS Code: 8421999099
  • UPC Code: 742330113141

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
SKYJACK 138399A
