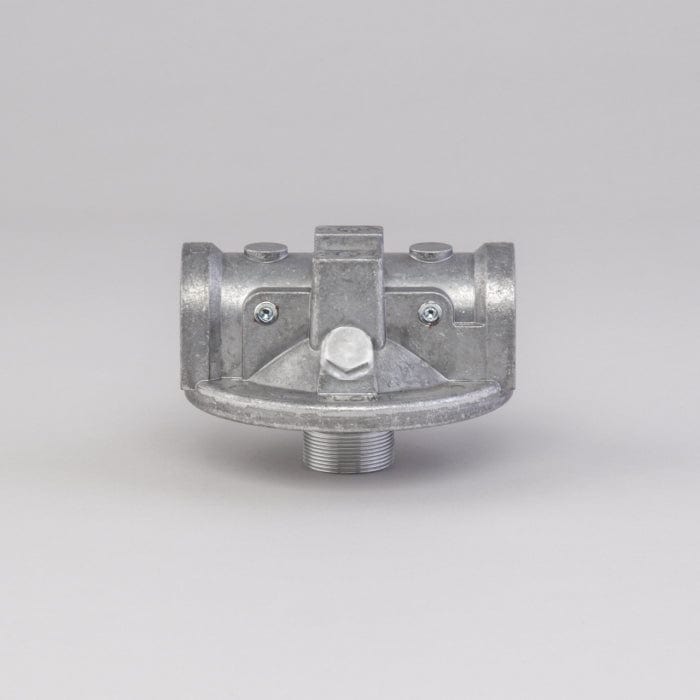

Head Assembly, Hydraulic - Donaldson P576557

Head Assembly, Hydraulic - Donaldson P576557

£83.75
£83.75
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P576557

Head Assembly, Hydraulic
Length 5.39 inch (136.8 mm)
Height 3.70 inch (94 mm)
Inlet Size 1 1/4 NPT
Outlet Size 1 1/4 NPT
Filter-to-Head Thread 1 1/4 BSP/G & 1 1/2-16 UN
Bypass Valve Yes
Bypass Valve Setting LR 25 psi (1.72 bar)
Series SP50/60
View full details

Specifications

Attributes

  • Length: 136.8 mm (5.39 inch)
  • Height: 94 mm (3.70 inch)
  • Inlet Size: 1 1/4 NPT
  • Outlet Size: 1 1/4 NPT
  • Filter-to-Head Thread: 1 1/4 BSP/G & 1 1/2-16 UN
  • Bypass Valve: Yes
  • Bypass Valve Setting LR: 1.72 bar (25 psi)
  • Series: SP50/60

Packaged Dimensions

  • Packaged Length: 0.145 m (5.80 inch)
  • Packaged Width: 0.145 m (5.80 inch)
  • Packaged Height: 0.108 m (4.30 inch)
  • Packaged Weight: 0.953 kg (2.10 lb)
  • Packaged Volume: 0.002 m3 (0.08 ft3)

Other Information

  • Country of Origin: China
  • NMFC Code: 104770
  • HTS Code: 8421999099
  • UPC Code: 742330224922
