• Donaldson Head Assembly, Hydraulic - Donaldson P563278
1 1

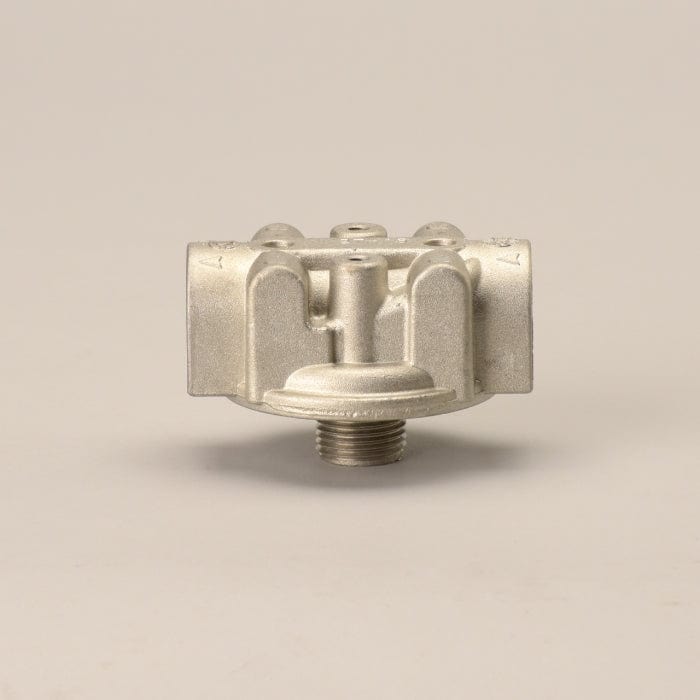

Head Assembly, Hydraulic - Donaldson P563278

Head Assembly, Hydraulic - Donaldson P563278

£22.94
£22.94
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P563278

Head Assembly, Hydraulic
Length 3.74 inch (95 mm)
Height 2.40 inch (61 mm)
Inlet Size 3/4-14 NPT
Outlet Size 3/4-14 NPT
Filter-to-Head Thread 1-12 UN
Bypass Valve Yes
Bypass Valve Setting LR 15 psi (1 bar)
Series SP15/25
View full details

Specifications

Attributes

  • Length: 95 mm (3.74 inch)
  • Height: 61 mm (2.40 inch)
  • Inlet Size: 3/4-14 NPT
  • Outlet Size: 3/4-14 NPT
  • Filter-to-Head Thread: 1-12 UN
  • Bypass Valve: Yes
  • Bypass Valve Setting LR: 1 bar (15 psi)
  • Series: SP15/25

Packaged Dimensions

  • Packaged Length: 0.099 m (3.94 inch)
  • Packaged Width: 0.079 m (3.15 inch)
  • Packaged Height: 0.059 m (2.36 inch)
  • Packaged Weight: 0.300 kg (0.66 lb)
  • Packaged Volume: 0.001 m3 (0.02 ft3)

Other Information

  • Country of Origin: Italy
  • HTS Code: 8421999099
  • UPC Code: 742330160893
