• Donaldson Head Assembly, Hydraulic - Donaldson P563277
1 1

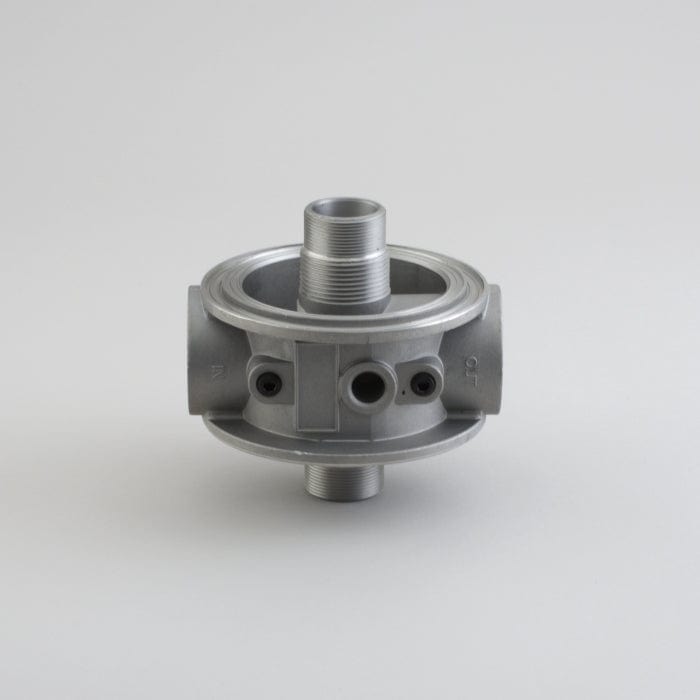

Head Assembly, Hydraulic - Donaldson P563277

Head Assembly, Hydraulic - Donaldson P563277

£147.50
£147.50
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P563277

Head Assembly, Hydraulic
Length 5.51 inch (139.95 mm)
Height 5.51 inch (139.95 mm)
Inlet Size 1 1/2 NPT
Outlet Size 1 1/2 NPT
Filter-to-Head Thread 1 1/4 BSP/G & 1 1/2-16 UN (x2)
Bypass Valve Yes
Bypass Valve Setting LR 25 psi (1.7 bar)
Series SP100/120
View full details

Specifications

Attributes

  • Length: 139.95 mm (5.51 inch)
  • Height: 139.95 mm (5.51 inch)
  • Inlet Size: 1 1/2 NPT
  • Outlet Size: 1 1/2 NPT
  • Filter-to-Head Thread: 1 1/4 BSP/G & 1 1/2-16 UN (x2)
  • Bypass Valve: Yes
  • Bypass Valve Setting LR: 1.7 bar (25 psi)
  • Series: SP100/120

Packaged Dimensions

  • Packaged Length: 0.154 m (6.15 inch)
  • Packaged Width: 0.148 m (5.90 inch)
  • Packaged Height: 0.138 m (5.50 inch)
  • Packaged Weight: 0.938 kg (2.07 lb)
  • Packaged Volume: 0.003 m3 (0.12 ft3)

Other Information

  • Country of Origin: Italy
  • NMFC Code: 133300-03
  • HTS Code: 8421999099
  • UPC Code: 742330158067

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
LHA SP100NHN01OR2
LHA SP100NHN1
LHA SP100NHNOR2
