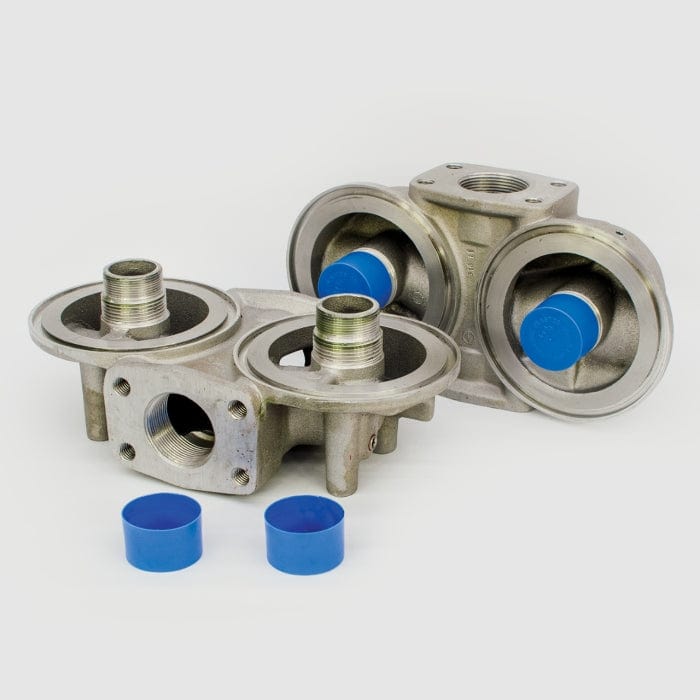

Head Assembly, Hydraulic - Donaldson P563274

Head Assembly, Hydraulic - Donaldson P563274

£212.23
£212.23
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P563274

Head Assembly, Hydraulic
Length 9.84 inch (250 mm)
Width 5.71 inch (145 mm)
Height 3.07 inch (78 mm)
Inlet Size 1 1/2 NPT
Outlet Size 1 1/2 NPT
Filter-to-Head Thread 1 1/4 BSP/G & 1 1/2-16 UN (x2)
Bypass Valve Yes
Bypass Valve Setting LR 25 psi (1.7 bar)
Series SP80/90
Primary Application LHA SP80NHN1
View full details

Specifications

Attributes

  • Length: 250 mm (9.84 inch)
  • Width: 145 mm (5.71 inch)
  • Height: 78 mm (3.07 inch)
  • Inlet Size: 1 1/2 NPT
  • Outlet Size: 1 1/2 NPT
  • Filter-to-Head Thread: 1 1/4 BSP/G & 1 1/2-16 UN (x2)
  • Bypass Valve: Yes
  • Bypass Valve Setting LR: 1.7 bar (25 psi)
  • Series: SP80/90
  • Primary Application: LHA SP80NHN1

Packaged Dimensions

  • Packaged Length: 0.305 m (12.20 inch)
  • Packaged Width: 0.120 m (4.80 inch)
  • Packaged Height: 0.185 m (7.40 inch)
  • Packaged Weight: 2.758 kg (6.08 lb)
  • Packaged Volume: 0.007 m3 (0.25 ft3)

Other Information

  • Country of Origin: United States
  • NMFC Code: 069100-05
  • HTS Code: 8421999099
  • UPC Code: 742330158036

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
ATLAS COPCO 1627410125
BADGER 1000204
LHA SP80NHN1
