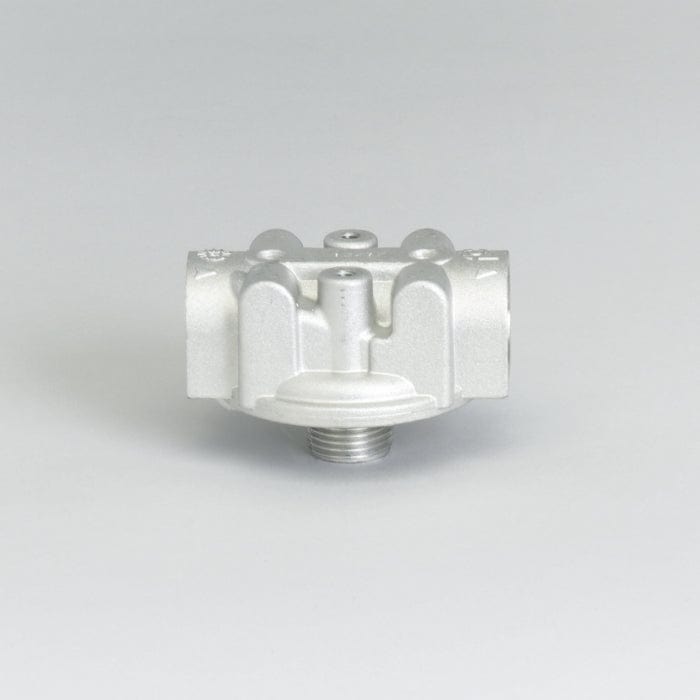

Head Assembly, Hydraulic - Donaldson P561141

Attributes

• Length: 95 mm (3.74 inch)
• Height: 61 mm (2.40 inch)
• Inlet Size: SAE-12
• Outlet Size: SAE-12
• Filter-to-Head Thread: 1-12 UN
• Bypass Valve: Yes
• Bypass Valve Setting LR: 1.7 bar (25 psi)
• Series: SP15/25

Packaged Dimensions

• Packaged Length: 0.099 m (3.94 inch)
• Packaged Width: 0.079 m (3.15 inch)
• Packaged Height: 0.059 m (2.36 inch)
• Packaged Weight: 0.290 kg (0.64 lb)
• Packaged Volume: 0.001 m3 (0.02 ft3)

Other Information

• Country of Origin: Italy
• HTS Code: 8421999099
• UPC Code: 742330131497
