• Donaldson Head Assembly, Hydraulic - Donaldson P561140
1 1

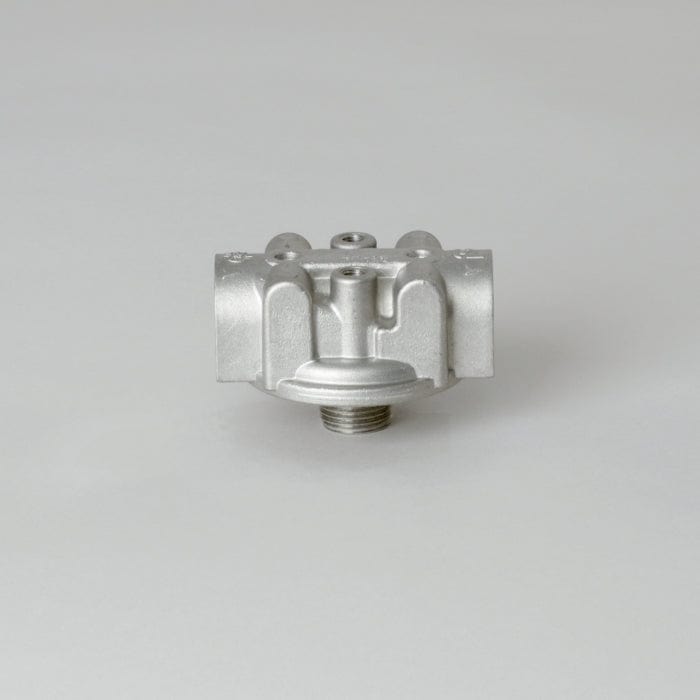

Head Assembly, Hydraulic - Donaldson P561140

Head Assembly, Hydraulic - Donaldson P561140

£66.63
£66.63
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P561140

Head Assembly, Hydraulic
Length 3.70 inch (94 mm)
Height 2.40 inch (61 mm)
Inlet Size SAE-12
Outlet Size SAE-12
Filter-to-Head Thread 1-12 UN
Bypass Valve Yes
Bypass Valve Setting LR 4 psi (0.3 bar)
Series SP15/25
View full details

Specifications

Attributes

  • Length: 94 mm (3.70 inch)
  • Height: 61 mm (2.40 inch)
  • Inlet Size: SAE-12
  • Outlet Size: SAE-12
  • Filter-to-Head Thread: 1-12 UN
  • Bypass Valve: Yes
  • Bypass Valve Setting LR: 0.3 bar (4 psi)
  • Series: SP15/25

Packaged Dimensions

  • Packaged Length: 0.295 m (11.81 inch)
  • Packaged Width: 0.158 m (6.30 inch)
  • Packaged Height: 0.128 m (5.12 inch)
  • Packaged Weight: 0.440 kg (0.97 lb)
  • Packaged Volume: 0.006 m3 (0.22 ft3)

Other Information

  • Country of Origin: Italy
  • HTS Code: 8421999099
  • UPC Code: 742330143407
