• Donaldson Head Assembly, Hydraulic - Donaldson P561138
1 1

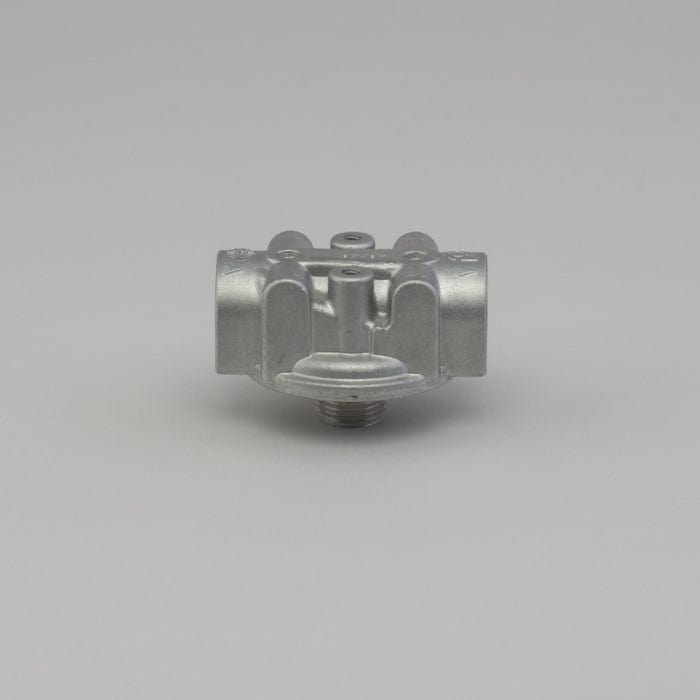

Head Assembly, Hydraulic - Donaldson P561138

Head Assembly, Hydraulic - Donaldson P561138

£18.96
£18.96
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P561138

Head Assembly, Hydraulic
Length 3.74 inch (95 mm)
Height 2.40 inch (61 mm)
Inlet Size SAE-8
Outlet Size SAE-8
Filter-to-Head Thread 1-12 UN
Bypass Valve Yes
Bypass Valve Setting LR 25 psi (1.7 bar)
Series SP15/25
View full details

Specifications

Attributes

  • Length: 95 mm (3.74 inch)
  • Height: 61 mm (2.40 inch)
  • Inlet Size: SAE-8
  • Outlet Size: SAE-8
  • Filter-to-Head Thread: 1-12 UN
  • Bypass Valve: Yes
  • Bypass Valve Setting LR: 1.7 bar (25 psi)
  • Series: SP15/25

Packaged Dimensions

  • Packaged Length: 0.108 m (4.33 inch)
  • Packaged Width: 0.108 m (4.33 inch)
  • Packaged Height: 0.108 m (4.33 inch)
  • Packaged Weight: 0.390 kg (0.86 lb)
  • Packaged Volume: 0.001 m3 (0.05 ft3)

Other Information

  • Country of Origin: Italy
  • NMFC Code: 133320
  • HTS Code: 8421999099
  • UPC Code: 742330131466

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
ASV INCORPORATED 2046281
JOHN DEERE M143206
