• Donaldson Head Assembly, Hydraulic - Donaldson P561134
1 1

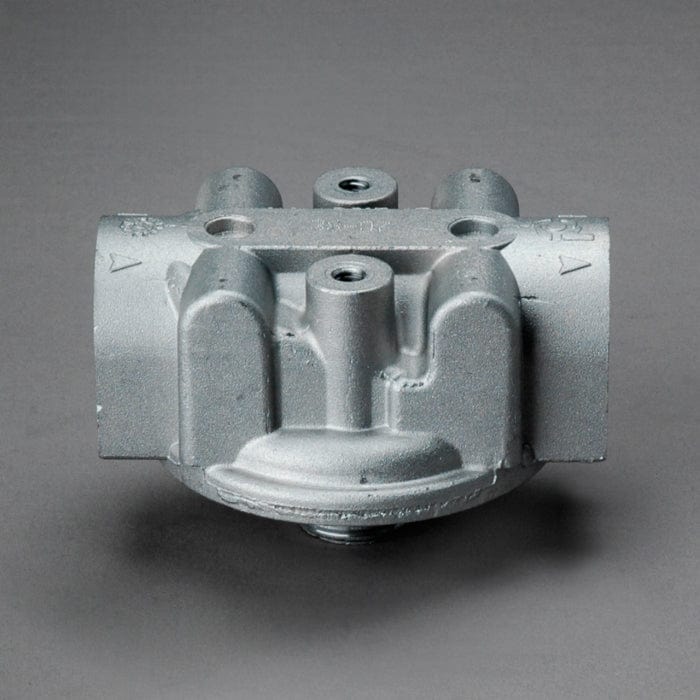

Head Assembly, Hydraulic - Donaldson P561134

Head Assembly, Hydraulic - Donaldson P561134

£44.67
£44.67
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P561134

Head Assembly, Hydraulic
Length 3.74 inch (95 mm)
Height 2.40 inch (61 mm)
Inlet Size 3/4-14 NPT
Outlet Size 3/4-14 NPT
Filter-to-Head Thread 1-12 UN
Bypass Valve Yes
Bypass Valve Setting LR 25 psi (1.7 bar)
Series SP15/25
View full details

Specifications

Attributes

  • Length: 95 mm (3.74 inch)
  • Height: 61 mm (2.40 inch)
  • Inlet Size: 3/4-14 NPT
  • Outlet Size: 3/4-14 NPT
  • Filter-to-Head Thread: 1-12 UN
  • Bypass Valve: Yes
  • Bypass Valve Setting LR: 1.7 bar (25 psi)
  • Series: SP15/25

Packaged Dimensions

  • Packaged Length: 0.286 m (11.42 inch)
  • Packaged Width: 0.167 m (6.69 inch)
  • Packaged Height: 0.138 m (5.51 inch)
  • Packaged Weight: 0.500 kg (1.10 lb)
  • Packaged Volume: 0.007 m3 (0.24 ft3)

Other Information

  • Country of Origin: Italy
  • HTS Code: 8421999099
  • UPC Code: 742330131428

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
GENIE 898330
JOHN DEERE AM106735
VMC HH561134
