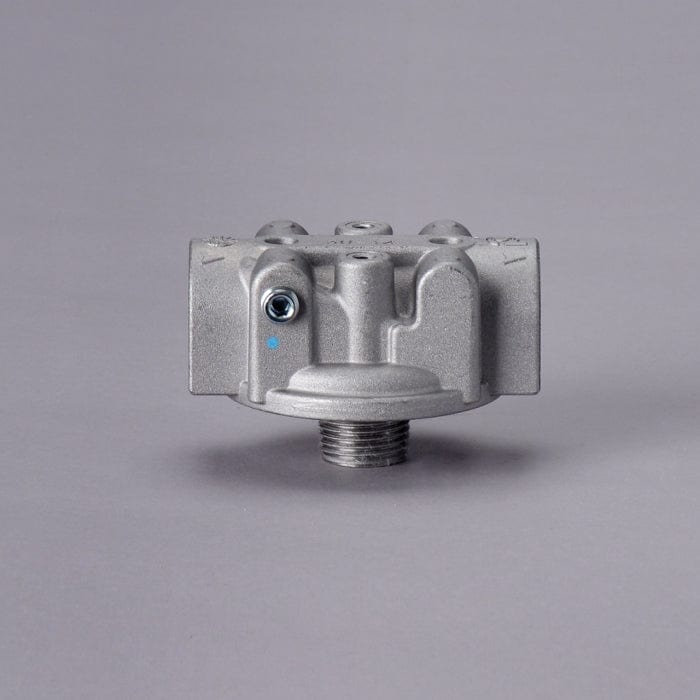

• Donaldson Head Assembly, Hydraulic - Donaldson P561131
1 1

Head Assembly, Hydraulic - Donaldson P561131

Head Assembly, Hydraulic - Donaldson P561131

£34.49
£34.49
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P561131

Head Assembly, Hydraulic
View full details

Specifications

Attributes

  • Length: 95 mm (3.74 inch)
  • Height: 61 mm (2.40 inch)
  • Inlet Size: 3/4-14 NPT
  • Outlet Size: 3/4-14 NPT
  • Filter-to-Head Thread: 1-12 UN
  • Bypass Valve: Yes
  • Bypass Valve Setting LR: 1.7 bar (25 psi)
  • Series: SP15/25

Packaged Dimensions

  • Packaged Length: 0.108 m (4.33 inch)
  • Packaged Width: 0.069 m (2.76 inch)
  • Packaged Height: 0.069 m (2.76 inch)
  • Packaged Weight: 0.295 kg (0.65 lb)
  • Packaged Volume: 0.001 m3 (0.02 ft3)

Other Information

  • Country of Origin: Italy
  • HTS Code: 8421999099
  • UPC Code: 742330131398

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
BOBCAT 6667317
EATON 5003904
FORD 9576P167848
LHA SP15NHN1
MI-JACK H92001027
MI-JACK P167848
RANSOMES H5012
SISU 1402069
