• Donaldson Head Assembly, Hydraulic - Donaldson P170491
1 1

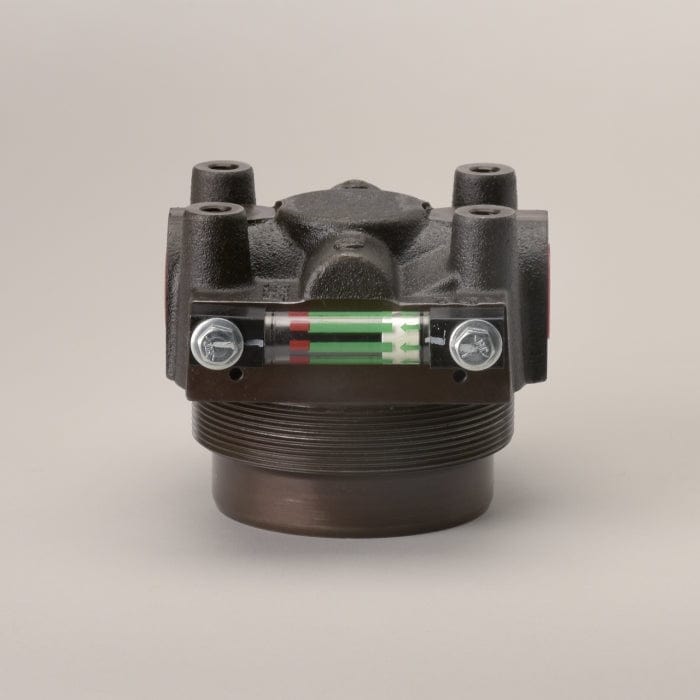

Head Assembly, Hydraulic - Donaldson P170491

Head Assembly, Hydraulic - Donaldson P170491

£487.30
£487.30
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P170491

Head Assembly, Hydraulic
Length 4.65 inch (118.11 mm)
Height 3.98 inch (101.1 mm)
Inlet Size SAE-12
Outlet Size SAE-12
Filter-to-Head Thread 1 1/2-18 UN
Bypass Valve No
Series HPK03
View full details

Specifications

Attributes

  • Length: 118.11 mm (4.65 inch)
  • Height: 101.1 mm (3.98 inch)
  • Inlet Size: SAE-12
  • Outlet Size: SAE-12
  • Filter-to-Head Thread: 1 1/2-18 UN
  • Bypass Valve: No
  • Series: HPK03

Packaged Dimensions

  • Packaged Length: 0.165 m (6.60 inch)
  • Packaged Width: 0.153 m (6.10 inch)
  • Packaged Height: 0.140 m (5.60 inch)
  • Packaged Weight: 3.718 kg (8.19 lb)
  • Packaged Volume: 0.004 m3 (0.13 ft3)

Other Information

  • Country of Origin: United States
  • NMFC Code: 133320
  • HTS Code: 8421999099
  • UPC Code: 742330112052

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
NEW HOLLAND F30430242
NEW HOLLAND FF30430242
