• Donaldson Head Assembly, Hydraulic - Donaldson P170489
1 1

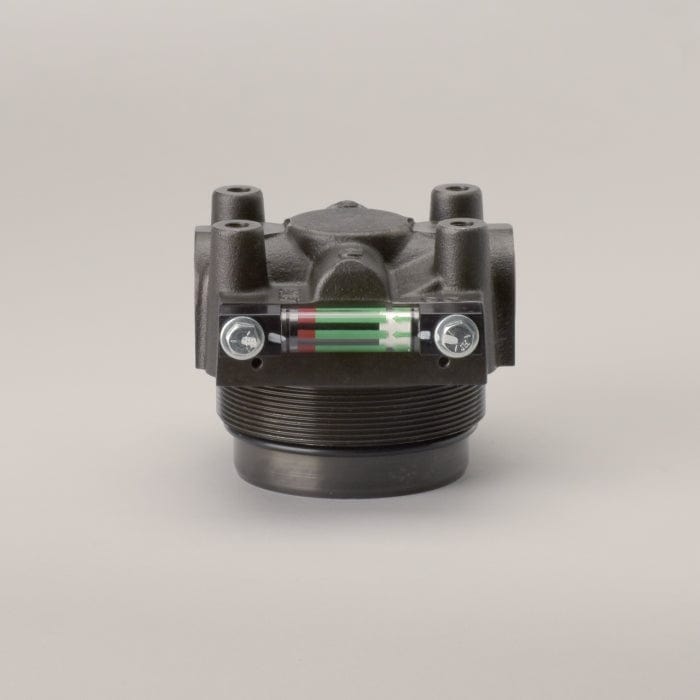

Head Assembly, Hydraulic - Donaldson P170489

Head Assembly, Hydraulic - Donaldson P170489

£493.57
£493.57
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P170489

Head Assembly, Hydraulic
Length 4.65 inch (118.11 mm)
Height 3.98 inch (101 mm)
Inlet Size SAE-12
Outlet Size SAE-12
Filter-to-Head Thread 1 1/2-18 UN
Bypass Valve Yes
Bypass Valve Setting LR 51 psi (3.5 bar)
Series HPK03
View full details

Specifications

Attributes

  • Length: 118.11 mm (4.65 inch)
  • Height: 101 mm (3.98 inch)
  • Inlet Size: SAE-12
  • Outlet Size: SAE-12
  • Filter-to-Head Thread: 1 1/2-18 UN
  • Bypass Valve: Yes
  • Bypass Valve Setting LR: 3.5 bar (51 psi)
  • Series: HPK03

Packaged Dimensions

  • Packaged Length: 0.163 m (6.50 inch)
  • Packaged Width: 0.153 m (6.10 inch)
  • Packaged Height: 0.140 m (5.60 inch)
  • Packaged Weight: 3.639 kg (8.02 lb)
  • Packaged Volume: 0.004 m3 (0.13 ft3)

Other Information

  • Country of Origin: United States
  • NMFC Code: 133320
  • HTS Code: 8421999099
  • UPC Code: 742330112045

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
MORBARK 26838132
