• Donaldson Head Assembly, Hydraulic - Donaldson P167728
1 1

Head Assembly, Hydraulic - Donaldson P167728

Head Assembly, Hydraulic - Donaldson P167728

£389.64
£389.64
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

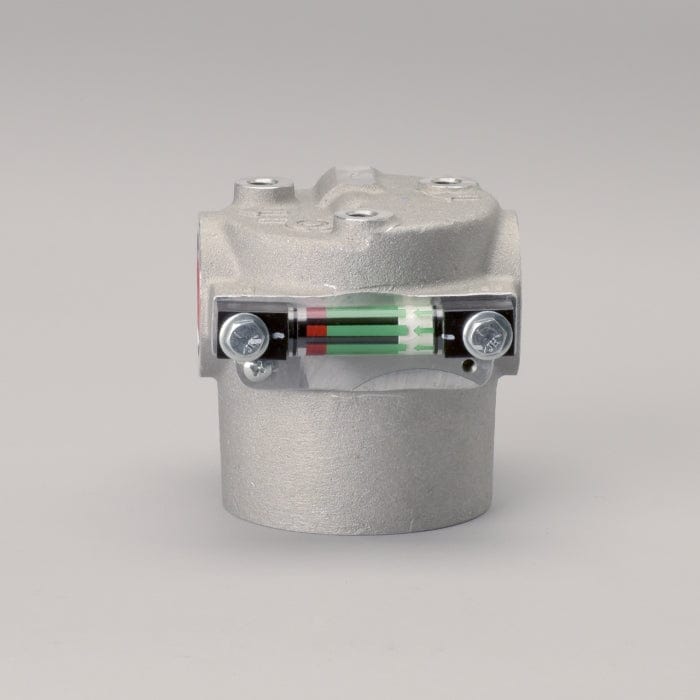

Donaldson P167728

Head Assembly, Hydraulic
Length 4.15 inch (105.38 mm)
Height 4.15 inch (105.41 mm)
Inlet Size SAE-12
Outlet Size SAE-12
Filter-to-Head Thread 2 3/4-12 UN
Bypass Valve Yes
Bypass Valve Setting LR 51 psi (3.5 bar)
Series HPK02
View full details

Specifications

Attributes

  • Length: 105.38 mm (4.15 inch)
  • Height: 105.41 mm (4.15 inch)
  • Inlet Size: SAE-12
  • Outlet Size: SAE-12
  • Filter-to-Head Thread: 2 3/4-12 UN
  • Bypass Valve: Yes
  • Bypass Valve Setting LR: 3.5 bar (51 psi)
  • Series: HPK02

Packaged Dimensions

  • Packaged Length: 0.165 m (6.60 inch)
  • Packaged Width: 0.153 m (6.10 inch)
  • Packaged Height: 0.140 m (5.60 inch)
  • Packaged Weight: 1.848 kg (4.07 lb)
  • Packaged Volume: 0.004 m3 (0.13 ft3)

Other Information

  • Country of Origin: United States
  • NMFC Code: 133320
  • HTS Code: 8421999099
  • UPC Code: 742330111314
