• Donaldson Head Assembly, Hydraulic - Donaldson P166665
1 1

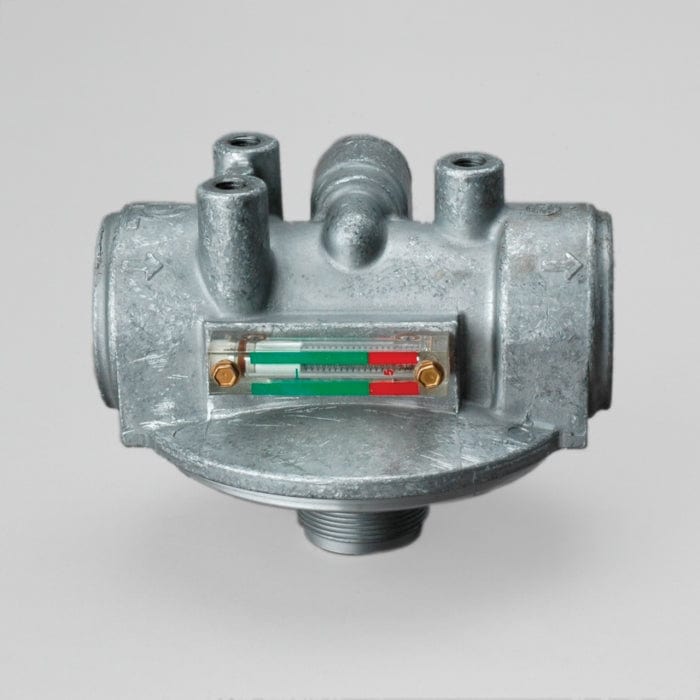

Head Assembly, Hydraulic - Donaldson P166665

Head Assembly, Hydraulic - Donaldson P166665

£96.75
£96.75
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P166665

Head Assembly, Hydraulic
Length 5.52 inch (140.2 mm)
Height 4.41 inch (112 mm)
Inlet Size 1 1/4 NPT
Outlet Size 1 1/4 NPT
Filter-to-Head Thread 1 1/2-16 UN
Bypass Valve Yes
Bypass Valve Setting LR 4 psi (0.3 bar)
Series HBK05
View full details

Specifications

Attributes

  • Length: 140.2 mm (5.52 inch)
  • Height: 112 mm (4.41 inch)
  • Inlet Size: 1 1/4 NPT
  • Outlet Size: 1 1/4 NPT
  • Filter-to-Head Thread: 1 1/2-16 UN
  • Bypass Valve: Yes
  • Bypass Valve Setting LR: 0.3 bar (4 psi)
  • Series: HBK05

Packaged Dimensions

  • Packaged Length: 0.150 m (6.00 inch)
  • Packaged Width: 0.150 m (6.00 inch)
  • Packaged Height: 0.120 m (4.80 inch)
  • Packaged Weight: 1.171 kg (2.58 lb)
  • Packaged Volume: 0.003 m3 (0.10 ft3)

Other Information

  • Country of Origin: United States
  • NMFC Code: 133320
  • HTS Code: 8421999099
  • UPC Code: 742330017999

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
CATERPILLAR 3I0728
CEDARAPIDS 4517500160
CMI 225500002000
CMI 226500002000
CMI 556500002000
HYSTER 1390701
NACCO MATERIALS 1390701
