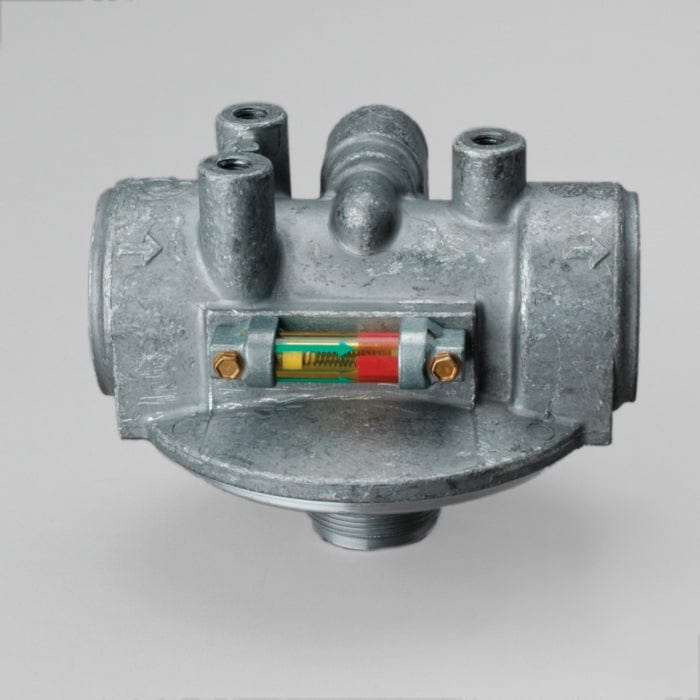

Head Assembly, Hydraulic - Donaldson P166439

Head Assembly, Hydraulic - Donaldson P166439

£134.23
£134.23
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P166439

Head Assembly, Hydraulic
View full details

Specifications

Attributes

  • Length: 139.7 mm (5.50 inch)
  • Height: 112 mm (4.41 inch)
  • Inlet Size: SAE-20
  • Outlet Size: SAE-20
  • Filter-to-Head Thread: 1 1/2-16 UN
  • Bypass Valve: Yes
  • Bypass Valve Setting LR: 1.7 bar (25 psi)
  • Series: HBK05

Packaged Dimensions

  • Packaged Length: 0.150 m (6.00 inch)
  • Packaged Width: 0.153 m (6.10 inch)
  • Packaged Height: 0.125 m (5.00 inch)
  • Packaged Weight: 1.087 kg (2.40 lb)
  • Packaged Volume: 0.003 m3 (0.11 ft3)

Other Information

  • Country of Origin: United States
  • NMFC Code: 133320
  • HTS Code: 8421999099
  • UPC Code: 742330017784

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
CASE/CASE IH NP166439
CATERPILLAR 3I0715
CHAMPION ROAD 54171
EIMCO 69033283
JACOBSEN 4121552
LINK BELT 3A20973
MARINE TRAVELIFT, INC. 604326
RANSOMES 4121552
SKYJACK 138403A
