• Donaldson Head Assembly, Hydraulic - Donaldson P166418
1 1

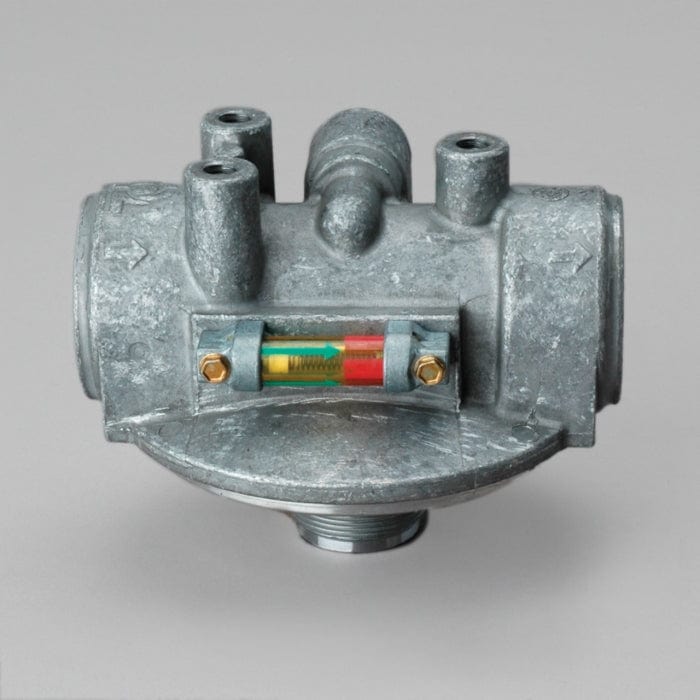

Head Assembly, Hydraulic - Donaldson P166418

Head Assembly, Hydraulic - Donaldson P166418

£161.99
£161.99
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P166418

Head Assembly, Hydraulic
Length 5.77 inch (146.46 mm)
Height 4.41 inch (112 mm)
Inlet Size 1 1/4-11 1/2 NPT
Outlet Size 1 1/4-11 1/2 NPT
Filter-to-Head Thread 1 1/2-16 UN
Bypass Valve Yes
Bypass Valve Setting LR 25 psi (1.7 bar)
Series HBK05
View full details

Specifications

Attributes

  • Length: 146.46 mm (5.77 inch)
  • Height: 112 mm (4.41 inch)
  • Inlet Size: 1 1/4-11 1/2 NPT
  • Outlet Size: 1 1/4-11 1/2 NPT
  • Filter-to-Head Thread: 1 1/2-16 UN
  • Bypass Valve: Yes
  • Bypass Valve Setting LR: 1.7 bar (25 psi)
  • Series: HBK05

Packaged Dimensions

  • Packaged Length: 0.150 m (6.00 inch)
  • Packaged Width: 0.150 m (6.00 inch)
  • Packaged Height: 0.125 m (5.00 inch)
  • Packaged Weight: 1.228 kg (2.71 lb)
  • Packaged Volume: 0.003 m3 (0.10 ft3)

Other Information

  • Country of Origin: United States
  • NMFC Code: 133320
  • HTS Code: 8421999099
  • UPC Code: 742330017777

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
BOSS INDUSTRIES 303385
CATERPILLAR 3I0714
EIMCO 69033327
HYSTER S00812812
LEROI GD142202301
