• Donaldson Head Assembly, Hmk25 Duramax - Donaldson P169985
1 1

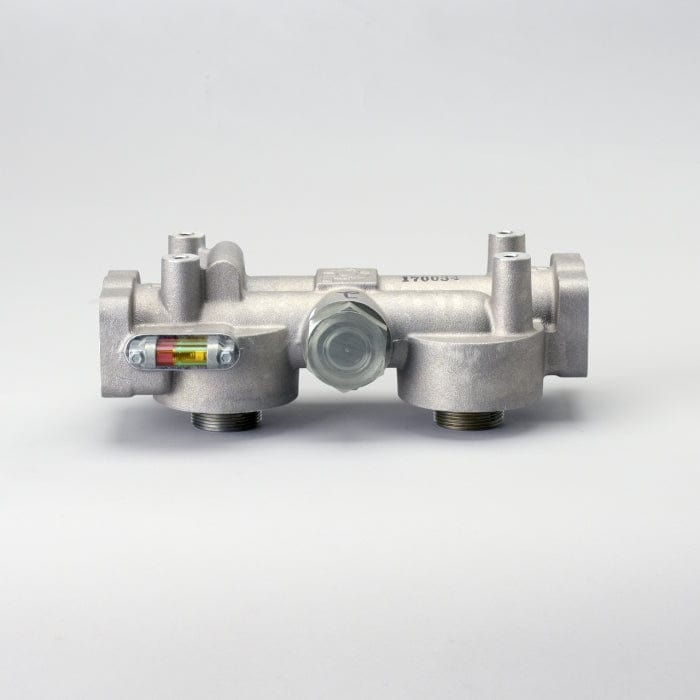

Head Assembly, Hmk25 Duramax - Donaldson P169985

Head Assembly, Hmk25 Duramax - Donaldson P169985

£268.98
£268.98
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P169985

Head Assembly, Hmk25 Duramax
Length 11.84 inch (300.74 mm)
Height 5.14 inch (130.56 mm)
Inlet Size 1 1/2-11 1/2 NPT
Outlet Size 1 1/2-11 1/2 NPT
Filter-to-Head Thread 1 3/4-12 UN (x2)
Bypass Valve Yes
Bypass Valve Setting LR 25 psi (1.7 bar)
Series HMK05/25
Brand Duramax®
View full details

Specifications

Attributes

  • Length: 300.74 mm (11.84 inch)
  • Height: 130.56 mm (5.14 inch)
  • Inlet Size: 1 1/2-11 1/2 NPT
  • Outlet Size: 1 1/2-11 1/2 NPT
  • Filter-to-Head Thread: 1 3/4-12 UN (x2)
  • Bypass Valve: Yes
  • Bypass Valve Setting LR: 1.7 bar (25 psi)
  • Series: HMK05/25
  • Brand: Duramax®

Packaged Dimensions

  • Packaged Length: 0.305 m (12.20 inch)
  • Packaged Width: 0.120 m (4.80 inch)
  • Packaged Height: 0.185 m (7.40 inch)
  • Packaged Weight: 3.609 kg (7.95 lb)
  • Packaged Volume: 0.007 m3 (0.25 ft3)

Other Information

  • Country of Origin: United States
  • NMFC Code: 133320
  • HTS Code: 8421999099
  • UPC Code: 742330019740

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
SULLIVAN PALATEK 050181850041
SULLIVAN PALATEK 501818541
