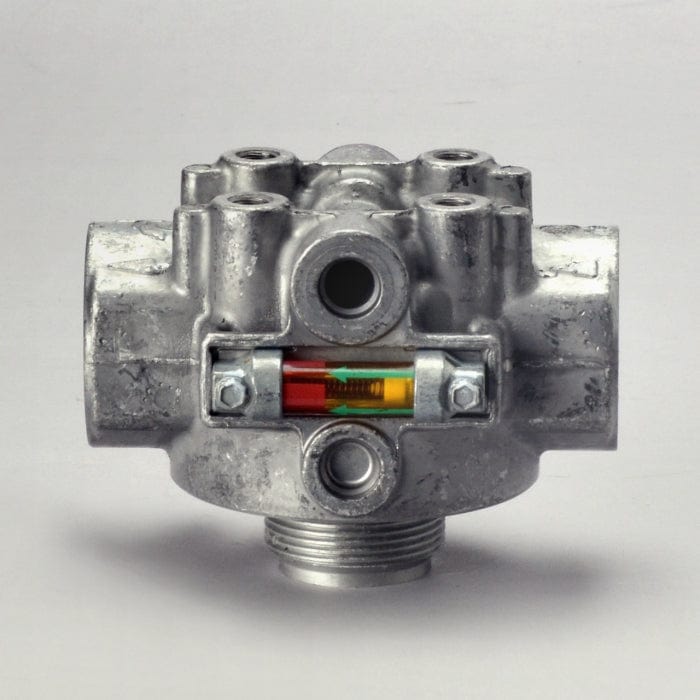

Head Assembly, Hmk05 Duramax - Donaldson P167622

Head Assembly, Hmk05 Duramax - Donaldson P167622

£89.87
£89.87
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P167622

Head Assembly, Hmk05 Duramax
Length 5.03 inch (127.76 mm)
Height 3.79 inch (96.27 mm)
Inlet Size 1 1/4-11 1/2 NPT
Outlet Size 1 1/4-11 1/2 NPT
Filter-to-Head Thread 1 3/4-12 UN
Bypass Valve Yes
Bypass Valve Setting LR 25 psi (1.7 bar)
Series HMK05/25
Brand Duramax®
View full details

Specifications

Attributes

  • Length: 127.76 mm (5.03 inch)
  • Height: 96.27 mm (3.79 inch)
  • Inlet Size: 1 1/4-11 1/2 NPT
  • Outlet Size: 1 1/4-11 1/2 NPT
  • Filter-to-Head Thread: 1 3/4-12 UN
  • Bypass Valve: Yes
  • Bypass Valve Setting LR: 1.7 bar (25 psi)
  • Series: HMK05/25
  • Brand: Duramax®

Packaged Dimensions

  • Packaged Length: 0.158 m (6.30 inch)
  • Packaged Width: 0.148 m (5.91 inch)
  • Packaged Height: 0.128 m (5.12 inch)
  • Packaged Weight: 0.858 kg (1.89 lb)
  • Packaged Volume: 0.003 m3 (0.11 ft3)

Other Information

  • Country of Origin: United States
  • NMFC Code: 133320
  • HTS Code: 8421999099
  • UPC Code: 742330113103

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
DEZZI 350016
FERMEL 45402616
LINK BELT 3J18359
SULLAIR 02250148384
SULLIVAN PALATEK 08415007
