• Donaldson Head Assembly, Hmk05 Duramax - Donaldson P167294
1 1

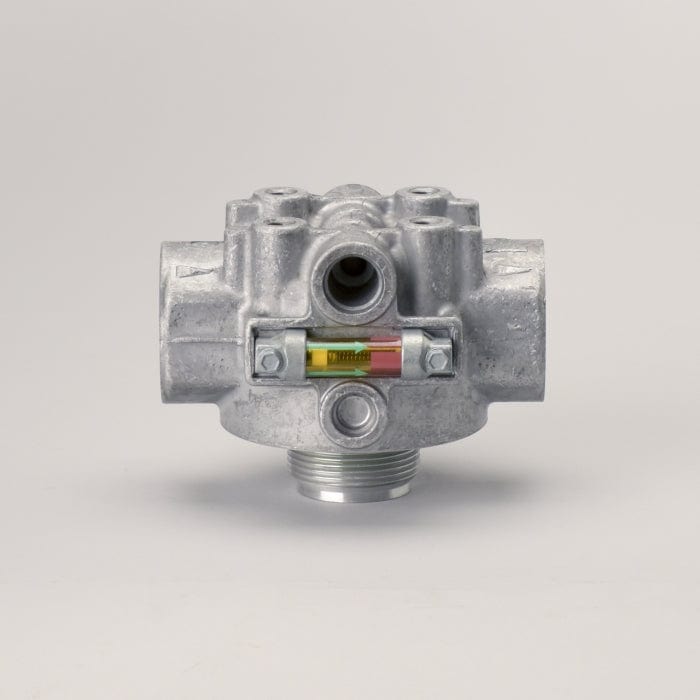

Head Assembly, Hmk05 Duramax - Donaldson P167294

Head Assembly, Hmk05 Duramax - Donaldson P167294

£133.69
£133.69
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P167294

Head Assembly, Hmk05 Duramax
Length 5.03 inch (127.76 mm)
Height 3.79 inch (96.27 mm)
Inlet Size 1 1/4-11 1/2 NPT
Outlet Size 1 1/4-11 1/2 NPT
Filter-to-Head Thread 1 3/4-12 UN
Bypass Valve Yes
Bypass Valve Setting LR 25 psi (1.7 bar)
Series HMK05/25
Brand Duramax®
View full details

Specifications

Attributes

  • Length: 127.76 mm (5.03 inch)
  • Height: 96.27 mm (3.79 inch)
  • Inlet Size: 1 1/4-11 1/2 NPT
  • Outlet Size: 1 1/4-11 1/2 NPT
  • Filter-to-Head Thread: 1 3/4-12 UN
  • Bypass Valve: Yes
  • Bypass Valve Setting LR: 1.7 bar (25 psi)
  • Series: HMK05/25
  • Brand: Duramax®

Packaged Dimensions

  • Packaged Length: 0.140 m (5.60 inch)
  • Packaged Width: 0.140 m (5.60 inch)
  • Packaged Height: 0.113 m (4.50 inch)
  • Packaged Weight: 1.031 kg (2.27 lb)
  • Packaged Volume: 0.002 m3 (0.08 ft3)

Other Information

  • Country of Origin: United States
  • NMFC Code: 133320
  • HTS Code: 8421999099
  • UPC Code: 742330018187

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
GARDNER DENVER 2118128
SULLIVAN PALATEK 050181850038
SULLIVAN PALATEK 501818538
TWIN DISC 1016501A
