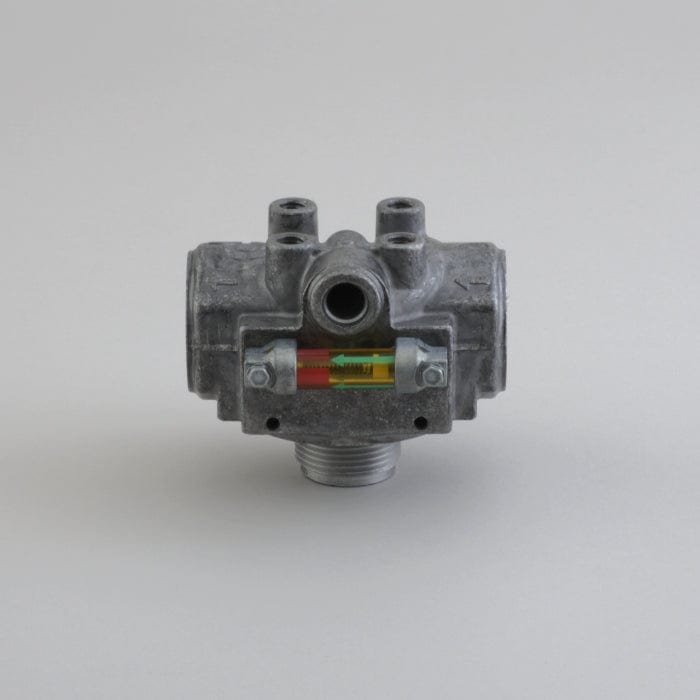

Head Assembly, Hmk04 Duramax - Donaldson P169310

Head Assembly, Hmk04 Duramax - Donaldson P169310

£73.36
£73.36
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P169310

Head Assembly, Hmk04 Duramax
Length 4.08 inch (103.63 mm)
Height 3.38 inch (85.85 mm)
Inlet Size 3/4 NPT
Outlet Size 3/4 NPT
Filter-to-Head Thread 1 3/8-12 UN
Bypass Valve Yes
Bypass Valve Setting LR 25 psi (1.7 bar)
Series HMK04/24
Brand Duramax®
View full details

Specifications

Attributes

  • Length: 103.63 mm (4.08 inch)
  • Height: 85.85 mm (3.38 inch)
  • Inlet Size: 3/4 NPT
  • Outlet Size: 3/4 NPT
  • Filter-to-Head Thread: 1 3/8-12 UN
  • Bypass Valve: Yes
  • Bypass Valve Setting LR: 1.7 bar (25 psi)
  • Series: HMK04/24
  • Brand: Duramax®

Packaged Dimensions

  • Packaged Length: 0.115 m (4.60 inch)
  • Packaged Width: 0.093 m (3.70 inch)
  • Packaged Height: 0.113 m (4.50 inch)
  • Packaged Weight: 0.751 kg (1.66 lb)
  • Packaged Volume: 0.001 m3 (0.04 ft3)

Other Information

  • Country of Origin: United States
  • NMFC Code: 133320
  • HTS Code: 8421999099
  • UPC Code: 742330019177

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
JOHN DEERE 9106200122
SELLICK EQPT LTD 180339
