• Donaldson Head Assembly, Hmk04 Duramax - Donaldson P169309
1 1

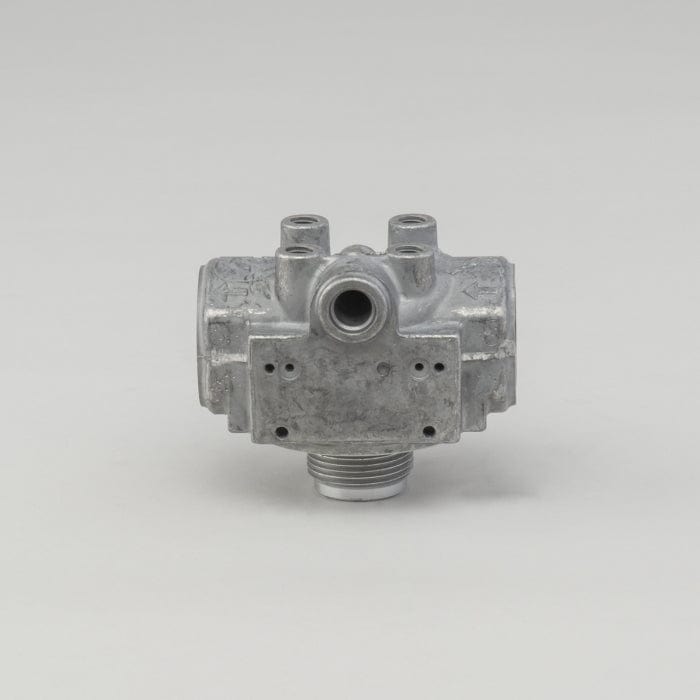

Head Assembly, Hmk04 Duramax - Donaldson P169309

Head Assembly, Hmk04 Duramax - Donaldson P169309

£51.09
£51.09
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P169309

Head Assembly, Hmk04 Duramax
Length 4.08 inch (103.63 mm)
Height 3.38 inch (85.85 mm)
Inlet Size 1-11 1/2 NPT
Outlet Size 1-11 1/2 NPT
Filter-to-Head Thread 1 3/8-12 UN
Bypass Valve Yes
Bypass Valve Setting LR 25 psi (1.7 bar)
Series HMK04/24
Brand Duramax®
View full details

Specifications

Attributes

  • Length: 103.63 mm (4.08 inch)
  • Height: 85.85 mm (3.38 inch)
  • Inlet Size: 1-11 1/2 NPT
  • Outlet Size: 1-11 1/2 NPT
  • Filter-to-Head Thread: 1 3/8-12 UN
  • Bypass Valve: Yes
  • Bypass Valve Setting LR: 1.7 bar (25 psi)
  • Series: HMK04/24
  • Brand: Duramax®

Packaged Dimensions

  • Packaged Length: 0.120 m (4.80 inch)
  • Packaged Width: 0.120 m (4.80 inch)
  • Packaged Height: 0.140 m (5.60 inch)
  • Packaged Weight: 0.658 kg (1.45 lb)
  • Packaged Volume: 0.002 m3 (0.07 ft3)

Other Information

  • Country of Origin: United States
  • NMFC Code: 133320
  • HTS Code: 8421999099
  • UPC Code: 742330019160

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
BOMBARDIER 118302400
PRINOTH 118302400
THOMAS 035244
THOMAS 35244
